写在前面

简言之，关联分析就是通过量化后的数字描述物品之间的影响，以及有多大的一些影响关系。

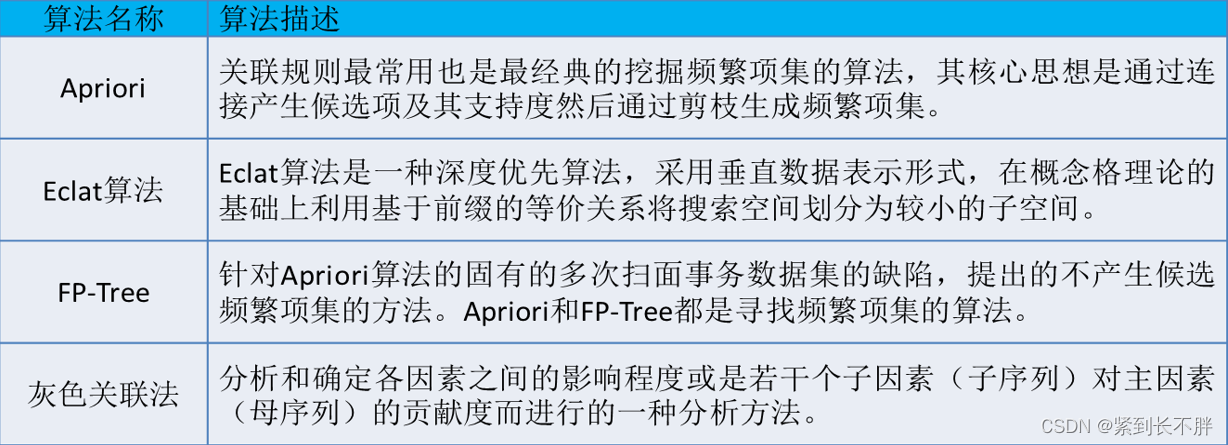

常见的算法如下：
在这里插入图片描述

Apriori关联规则

基本的术语解释：

事务（Transaction）：简单理解，一个人购物是的一张小票里面的所有物品组成的集合。
项（Item）：小票里面的商品A
项集（Itemset）：多个商品组成的集合，和上面不同，你细细品。这里就衍生出，1-项集、2-项集、k-项集等等。
符号：X => Y X称为前项，那么Y称为后项。
支持度（Support）：简言之，概率或者频率。
$S u p p o r t (X - > Y) = P (X, Y) / P (I) = P (X \cup Y) / P (I) = m u m (X \cup Y) / n u m (I)$
I表示总事务集。 num()表示求事务集里特定项集出现的次数。比如， num(I)表示总事务集的个数num(X∪Y)表示含有{X,Y}的事务集的个数。
频繁项集（Largeltemsets），其实就是满足最小支持度阈值的，这个项集就叫做频繁项集
置信度（Confidence）
置信度是表示在先决条件下X发生情况下，有 $X - > Y$ 推出Y的概率。
$C o n f i d e n c e (X - > Y) = P (Y ∣ X) = P (X, Y) / P (X) = P (X \cup Y) / P (X)$
提升度（Lift）
表示含有X的条件下，同时包含Y的概率，与Y总体发生概率之比。
$L i f t (X - > Y) = P (Y ∣ X / P (Y)$

在R语言中，Apriori关联规则算法是借助arules中的一系列函数来实现的，而另一个包arulesViz则可以实现关联规则的可视化。

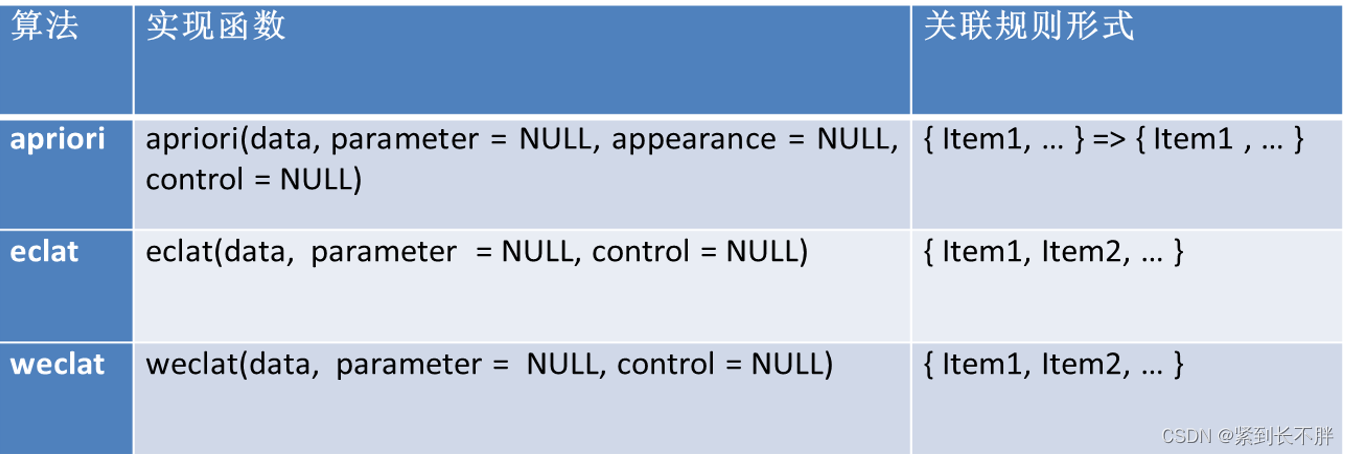

在arules中，建立关联规则有三种方法，分别为apriori算法，eclat算法和weclat算法。各算法的函数实现如下表：
在这里插入图片描述

代码实现

一般要进行数据之间的转换，通常是转换为transaction的形式。

# transactions格式的转换
# 列表转换transactions
a_list <- list(c("a", "b", "c"), c("a", "b"), c("a", "b", "d"), c("c", "e"),
               c("a", "b", "d", "e"))
names(a_list) <- paste("Tr", c(1:5), sep = "")  # 列表重命名
library(arules)
trans <- as(a_list, "transactions")  # 将列表转换为transactions
inspect(trans)  # 检查是否转换成功
# 数据框转换transactions
a_df <- data.frame(age = as.factor(c(6, 8, 7, 6, 9, 5)),
                   grade = as.factor(c(1, 3, 1, 1, 4, 1)))
trans2 <- as(a_df, "transactions")  # 将数据框转换为transactions
inspect(trans2)  # 检查是否转换成功

实际案例

# 关联规则分析
library(arules)  # 加载程序包arules
data("Groceries")  # 提取数据集Groceries
# 数据集相关的统计汇总信息，包括事务和项集的汇总情况
summary(Groceries)

out:

transactions as itemMatrix in sparse format with
 9835 rows (elements/itemsets/transactions) and
 169 columns (items) and a density of 0.02609146

most frequent items:
      whole milk other vegetables       rolls/buns             soda           yogurt
            2513             1903             1809             1715             1372
         (Other)
           34055

element (itemset/transaction) length distribution:
sizes
   1    2    3    4    5    6    7    8    9   10   11   12   13   14   15   16   17   18
2159 1643 1299 1005  855  645  545  438  350  246  182  117   78   77   55   46   29   14
  19   20   21   22   23   24   26   27   28   29   32
  14    9   11    4    6    1    1    1    1    3    1

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
  1.000   2.000   3.000   4.409   6.000  32.000

includes extended item information - examples:
       labels  level2           level1
1 frankfurter sausage meat and sausage
2     sausage sausage meat and sausage
3  liver loaf sausage meat and sausage

# 建立关联规则rules，设定支持度最小值为0.001，置信度最小值为0.5
rules <- apriori(Groceries, parameter = list(support = 0.001, confidence = 0.5))

out:

Apriori

Parameter specification:
 confidence minval smax arem  aval originalSupport maxtime support minlen maxlen target  ext
        0.5    0.1    1 none FALSE            TRUE       5   0.001      1     10  rules TRUE

Algorithmic control:
 filter tree heap memopt load sort verbose
    0.1 TRUE TRUE  FALSE TRUE    2    TRUE

Absolute minimum support count: 9

set item appearances ...[0 item(s)] done [0.00s].
set transactions ...[169 item(s), 9835 transaction(s)] done [0.00s].
sorting and recoding items ... [157 item(s)] done [0.00s].
creating transaction tree ... done [0.00s].
checking subsets of size 1 2 3 4 5 6 done [0.02s].
writing ... [5668 rule(s)] done [0.01s].
creating S4 object  ... done [0.00s].

# 查看规则的汇总信息
summary(rules)

out:

summary(rules)
set of 5668 rules

rule length distribution (lhs + rhs):sizes
   2    3    4    5    6
  11 1461 3211  939   46

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
   2.00    3.00    4.00    3.92    4.00    6.00

summary of quality measures:
    support           confidence        coverage             lift            count
 Min.   :0.001017   Min.   :0.5000   Min.   :0.001017   Min.   : 1.957   Min.   : 10.0
 1st Qu.:0.001118   1st Qu.:0.5455   1st Qu.:0.001729   1st Qu.: 2.464   1st Qu.: 11.0
 Median :0.001322   Median :0.6000   Median :0.002135   Median : 2.899   Median : 13.0
 Mean   :0.001668   Mean   :0.6250   Mean   :0.002788   Mean   : 3.262   Mean   : 16.4
 3rd Qu.:0.001729   3rd Qu.:0.6842   3rd Qu.:0.002949   3rd Qu.: 3.691   3rd Qu.: 17.0
 Max.   :0.022267   Max.   :1.0000   Max.   :0.043416   Max.   :18.996   Max.   :219.0

mining info:
      data ntransactions support confidence
 Groceries          9835   0.001        0.5
                                                                           call
 apriori(data = Groceries, parameter = list(support = 0.001, confidence = 0.5))

# 查看Groceries中商品的支持度
# Groceries数据中前3件商品的支持度
itemFrequency(Groceries[, 1:3])

out:

frankfurter     sausage  liver loaf
0.058973055 0.093950178 0.005083884

# Groceries数据中商品whole milk、other vegetables的支持度
itemFrequency(Groceries[, c("whole milk", "other vegetables")])

out:

      whole milk other vegetables
       0.2555160        0.1934926

# 输出支持度频率图

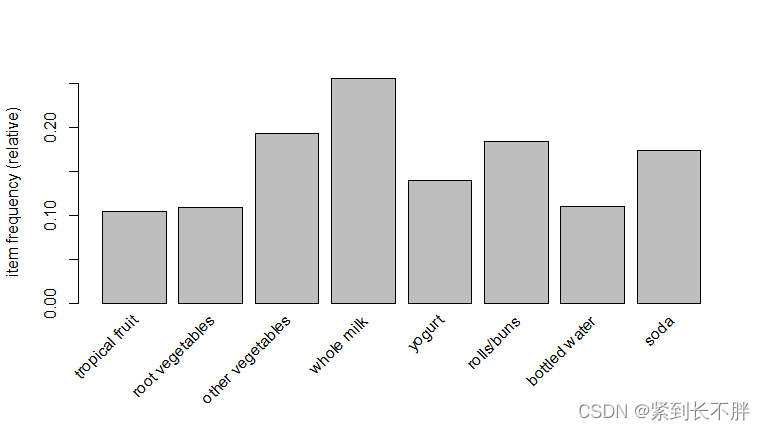

# 输出支持度support大于0.1的项集的支持度频率图
itemFrequencyPlot(Groceries, support = 0.1)

在这里插入图片描述

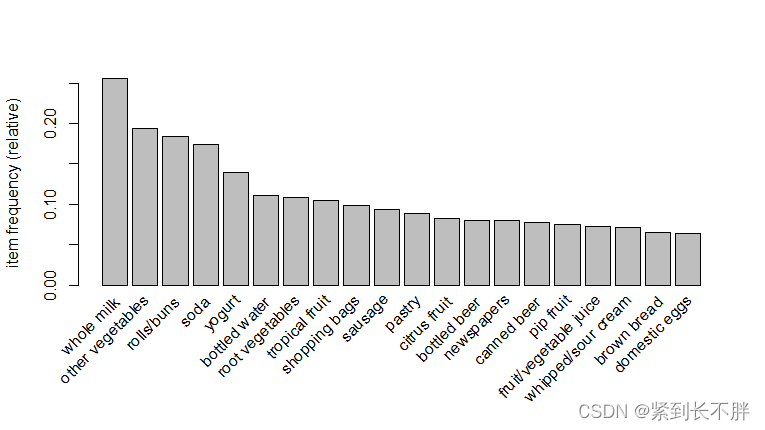

#输出支持度support最大的前20个项集的支持度频率图
itemFrequencyPlot(Groceries , topN = 20)

在这里插入图片描述

# 查看数据和规则
# 查看关联数据Groceries的前五项
inspect(Groceries[1:5])

out:

 items
[1] {citrus fruit,
     semi-finished bread,
     margarine,
     ready soups}
[2] {tropical fruit,
     yogurt,
     coffee}
[3] {whole milk}
[4] {pip fruit,
     yogurt,
     cream cheese ,
     meat spreads}
[5] {other vegetables,
     whole milk,
     condensed milk,
     long life bakery product}

# 查看前五项关联规则
inspect(rules[1:5])

out:

   lhs                    rhs          support     confidence coverage    lift     count
[1] {honey}             => {whole milk} 0.001118454 0.7333333  0.001525165 2.870009 11
[2] {tidbits}           => {rolls/buns} 0.001220132 0.5217391  0.002338587 2.836542 12
[3] {cocoa drinks}      => {whole milk} 0.001321810 0.5909091  0.002236909 2.312611 13
[4] {pudding powder}    => {whole milk} 0.001321810 0.5652174  0.002338587 2.212062 13
[5] {cooking chocolate} => {whole milk} 0.001321810 0.5200000  0.002541942 2.035097 13

# 计算规则的各项附加信息
# 计算"coverage", "fishersExactTest", "conviction", "chiSquared"
qualityMeasures <- interestMeasure(rules, measure = c("coverage", "fishersExactTest",
                                                      "conviction", "chiSquared"),
                                   transactions = Groceries)
summary(qualityMeasures)
quality(rules) <- cbind(quality(rules), qualityMeasures)  # 合并quality measures
quality(rules) <- round(quality(rules), digits = 3)  # 保留小数点后3位
inspect(head(rules))  # 查看合并后的关联规则

out:

    lhs                    rhs          support confidence coverage lift  count coverage
[1] {honey}             => {whole milk} 0.001   0.733      0.002    2.870 11    0.002
[2] {tidbits}           => {rolls/buns} 0.001   0.522      0.002    2.837 12    0.002
[3] {cocoa drinks}      => {whole milk} 0.001   0.591      0.002    2.313 13    0.002
[4] {pudding powder}    => {whole milk} 0.001   0.565      0.002    2.212 13    0.002
[5] {cooking chocolate} => {whole milk} 0.001   0.520      0.003    2.035 13    0.003
[6] {cereals}           => {whole milk} 0.004   0.643      0.006    2.516 36    0.006
    fishersExactTest conviction chiSquared
[1] 0.000            2.792      18.030
[2] 0.000            1.706      17.526
[3] 0.001            1.820      13.039
[4] 0.002            1.712      11.624
[5] 0.004            1.551       9.217
[6] 0.000            2.085      44.420

# 规则排序
# 按支持度递减的顺序对rules排序
sort(rules, by = "support")
# 按支持度递减的顺序，输出支持度最大的前五项规则
inspect(sort(rules, by = "support")[1:5])

    lhs                                       rhs          support confidence coverage lift
[1] {other vegetables, yogurt}             => {whole milk} 0.022   0.513      0.043    2.007
[2] {other vegetables, whipped/sour cream} => {whole milk} 0.015   0.507      0.029    1.984
[3] {tropical fruit, yogurt}               => {whole milk} 0.015   0.517      0.029    2.025
[4] {root vegetables, yogurt}              => {whole milk} 0.015   0.563      0.026    2.203
[5] {pip fruit, other vegetables}          => {whole milk} 0.014   0.518      0.026    2.025
    count coverage fishersExactTest conviction chiSquared
[1] 219   0.043    0                1.528      155.428
[2] 144   0.029    0                1.510       97.261
[3] 149   0.029    0                1.543      106.934
[4] 143   0.026    0                1.704      129.583
[5] 133   0.026    0                1.543       95.223

# 提取规则
# 提取后项为"whole milk"并且提升度大于1.2的关联规则
subset(rules, subset = rhs %in% "whole milk" & lift >= 1.2)
# 查看满足后项为"whole milk"并且提升度大于1.2的关联规则的前五项
inspect(subset(rules, subset = rhs %in% "whole milk" & lift >= 1.2)[1:5])

out:

   lhs                    rhs          support confidence coverage lift  count coverage
[1] {honey}             => {whole milk} 0.001   0.733      0.002    2.870 11    0.002
[2] {cocoa drinks}      => {whole milk} 0.001   0.591      0.002    2.313 13    0.002
[3] {pudding powder}    => {whole milk} 0.001   0.565      0.002    2.212 13    0.002
[4] {cooking chocolate} => {whole milk} 0.001   0.520      0.003    2.035 13    0.003
[5] {cereals}           => {whole milk} 0.004   0.643      0.006    2.516 36    0.006
    fishersExactTest conviction chiSquared
[1] 0.000            2.792      18.030
[2] 0.001            1.820      13.039
[3] 0.002            1.712      11.624
[4] 0.004            1.551       9.217
[5] 0.000            2.085      44.420

# 关联规则分析
library(arules)  # 加载程序包arules
library(arulesViz)  # 加载程序包arulesViz

data("Groceries")  # 提取数据集Groceries
summary(Groceries)  # 数据集相关的统计汇总信息，包括事务和项集的汇总情况
inspect(Groceries[1:10])  # 查看数据集的前10个事务
Size <- size(Groceries)  # 查看每个交易记录包含的商品数目

# 查看Groceries中商品的支持度
ItemFrequency <- itemFrequency(Groceries)
# 查看Groceries数据中商品whole milk、other vegetables的支持度
itemFrequency(Groceries[, c("whole milk", "other vegetables")])

# 作出支持度support最大的前20个项集的稀疏矩阵图
itemFrequencyPlot(Groceries, topN = 20)

# 建立关联规则rules，条件是支持度大于0.001且置信度大于0.5
rules <- apriori(Groceries, parameter = list(support = 0.001, confidence = 0.5))
inspect(rules[1:10])  # 查看rules前十则关联规则

# 查看其它的quality measures
# 计算"coverage", "fishersExactTest", "conviction", "chiSquared" summary(qualityMeasures)
qualityMeasures <- interestMeasure(rules, measure = c("coverage", "fishersExactTest",
                                                      "conviction", "chiSquared"),
                                   transactions = Groceries)
quality(rules) <- cbind(quality(rules), qualityMeasures)  # 合并quality measures
quality(rules) <- round(quality(rules), digits = 3)  # 保留小数点后3位
inspect(head(rules))  # 查看合并后的关联规则

# 规则排序
# 按提升度排序
rules.sorted <- sort(rules, by = "lift")
# 查看排序后的前五则关联规则
inspect(rules.sorted[1:5])
# 提取后项为"whole milk"并且提升度大于1.2的关联规则
rules.subset <- subset(rules, subset = rhs%in%"whole milk" & lift >= 1.2)
# 查看满足后项为"whole milk"并且提升度大于1.2的关联规则的前五项
inspect(rules.subset[1:5])

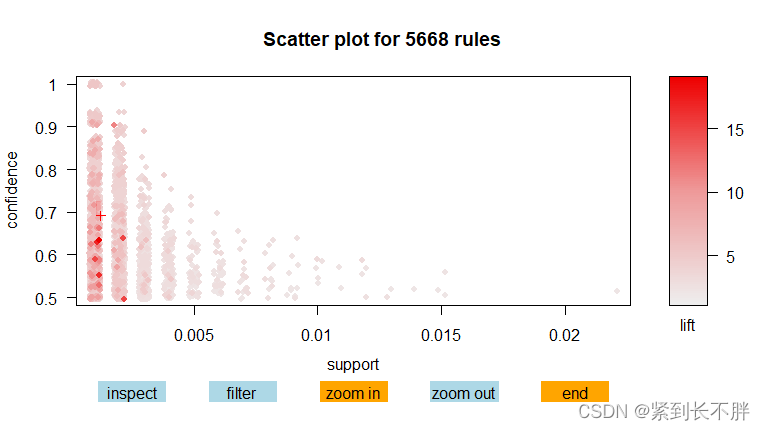

# 对关联规则做散点图
plot(rules, method = "scatter", interactive = T)
