安装虚拟机

配置安装Hadoop高可用集群、Zookeeper、Spark、HBase、MySQL、Kafka

数据集

链接：https://pan.baidu.com/s/12U7GMtxOHdUbsIUCNBcT_g
提取码：1234

在pom.xml文件中添加下列依赖

<dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>io.netty</groupId>
                <artifactId>netty-all</artifactId>
                <version>4.1.18.Final</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <dependencies>
        <!--Json依赖-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.62</version>
        </dependency>
        <!--HBase依赖-->
        <dependency>
            <groupId>org.apache.hbase</groupId>
            <artifactId>hbase-client</artifactId>
            <version>1.2.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hbase</groupId>
            <artifactId>hbase-common</artifactId>
            <version>1.2.1</version>
        </dependency>
        <!--Spark依赖-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_2.11</artifactId>
            <version>2.3.2</version>
            <exclusions>
                <exclusion>
                    <groupId>io.netty</groupId>
                    <artifactId>netty</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_2.11</artifactId>
            <version>2.3.2</version>
        </dependency>
        <!--Hadoop依赖-->
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>2.7.4</version>
        </dependency>
        <!--Spark Streaming依赖-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming_2.11</artifactId>
            <version>2.3.2</version>
        </dependency>
        <!--Spark Streaming整合Kafka依赖-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming-kafka-0-10_2.11</artifactId>
            <version>2.3.2</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
            <plugin>
                <artifactId>maven-assembly-plugin</artifactId>
                <configuration>
                    <appendAssemblyId>false</appendAssemblyId>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                    <archive>
                        <manifest>
                            <!-- 此处指定main方法入口的class -->
                            <mainClass>cn.itcast.top3.AreaProductTop3</mainClass>
                        </manifest>
                    </archive>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>assembly</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

连接HBase

下面的代码放入同一个包HBase内

package cn.itcast.hbase;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.HBaseConfiguration;
import org.apache.hadoop.hbase.MasterNotRunningException;
import org.apache.hadoop.hbase.ZooKeeperConnectionException;
import org.apache.hadoop.hbase.client.Connection;
import org.apache.hadoop.hbase.client.ConnectionFactory;
import org.apache.hadoop.hbase.client.HBaseAdmin;
import java.io.IOException;
public class HbaseConnect {
    public static Configuration conf;
    public static Connection conn;
    public static HBaseAdmin hbaseAdmin;
    static {
        conf = HBaseConfiguration.create();
        conf.set("hbase.zookeeper.quorum", "hadoop1,hadoop2,hadoop3");
        conf.set("hbase.zookeeper.property.clientPort", "2181");
        try {
            conn = ConnectionFactory.createConnection(conf);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    public static HBaseAdmin getHBaseAdmin() throws IOException{
        try {
            hbaseAdmin = (HBaseAdmin)(conn.getAdmin());
        } catch (MasterNotRunningException e) {
            e.printStackTrace();
        } catch (ZooKeeperConnectionException e) {
            e.printStackTrace();
        }
        return hbaseAdmin;
    }
    public static Connection getConnection(){
        return conn;
    }
    public static synchronized void closeConnection(){
        if(conn!=null){
            try {
                conn.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

package cn.itcast.hbase;

import org.apache.hadoop.hbase.HColumnDescriptor;
import org.apache.hadoop.hbase.HTableDescriptor;
import org.apache.hadoop.hbase.TableName;
import org.apache.hadoop.hbase.client.*;
import org.apache.hadoop.hbase.util.Bytes;
import java.io.IOException;
public class HbaseUtils {
    public static void createTable(String tableName,
                                   String... columFamilys)
            throws IOException {
        HBaseAdmin admin = HbaseConnect.getHBaseAdmin();
        //判断表是否存在
        if (admin.tableExists(tableName)){
            //关闭表
            admin.disableTable(tableName);
            //删除表
            admin.deleteTable(tableName);
        }
        HTableDescriptor hd
                = new HTableDescriptor(TableName.valueOf(tableName));
        for (String cf : columFamilys) {
            hd.addFamily(new HColumnDescriptor(cf));
        }
        admin.createTable(hd);
        admin.close();
    }
    public static void putsToHBase(String tableName,
                                   String rowkey,
                                   String cf,
                                   String[] column,
                                   String[] value)
            throws Exception {
        Table table = HbaseConnect
                .getConnection()
                .getTable(TableName.valueOf(tableName));
        Put puts = new Put(rowkey.getBytes());
        for (int i = 0;i<column.length;i++){
            puts.addColumn(
                    Bytes.toBytes(cf),
                    Bytes.toBytes(column[i]),
                    Bytes.toBytes(value[i]));
        }
        table.put(puts);
        table.close();
    }
    public static ResultScanner scan(String tableName)
            throws IOException {
        //获取指定HBase数据表的操作对象
        Table table = HbaseConnect
                .getConnection()
                .getTable(TableName.valueOf(tableName));
        Scan scan = new Scan();
        return table.getScanner(scan);
    }
    public static void putsOneToHBase(String tableName,
                                      String rowkey,
                                      String cf,
                                      String column,
                                      String value)
            throws IOException {
        Table table = HbaseConnect
                .getConnection()
                .getTable(TableName.valueOf(tableName));
        Put puts = new Put(rowkey.getBytes());
        puts.addColumn(
                Bytes.toBytes(cf),
                Bytes.toBytes(column),
                Bytes.toBytes(value));
        table.put(puts);
        table.close();
    }
}

热门品类Top10分析

下面的代码放入同一个包Top10内

package cn.itcast.Top10;

import java.io.Serializable;
public class CategorySortKey implements Comparable<CategorySortKey>
        ,Serializable {
    private int viewCount;
    private int cartCount;
    private int purchaseCount;

    public CategorySortKey(
            int viewcount,
            int cartCount,
            int purchaseCount) {
        this.viewCount = viewcount;
        this.cartCount = cartCount;
        this.purchaseCount = purchaseCount;
    }

    public int getViewCount() {
        return viewCount;
    }

    public void setViewCount(int viewCount) {
        this.viewCount = viewCount;
    }

    public int getCartCount() {
        return cartCount;
    }

    public void setCartCount(int cartCount) {
        this.cartCount = cartCount;
    }

    public int getPurchaseCount() {
        return purchaseCount;
    }

    public void setPurchaseCount(int purchaseCount) {
        this.purchaseCount = purchaseCount;
    }

    @Override
    public int compareTo(CategorySortKey other) {
        if (viewCount - other.getViewCount() != 0) {
            return (int) (viewCount - other.getViewCount());
        } else if (cartCount - other.getCartCount() != 0) {
            return (int) (cartCount - other.getCartCount());
        } else if (purchaseCount - other.getPurchaseCount() != 0) {
            return (int) (purchaseCount - other.getPurchaseCount());
        }
        return 0;
    }
}

package cn.itcast.Top10;

import cn.itcast.hbase.HbaseConnect;
import cn.itcast.hbase.HbaseUtils;
import com.alibaba.fastjson.JSONObject;
import org.apache.spark.SparkConf;
import org.apache.spark.api.java.JavaPairRDD;
import org.apache.spark.api.java.JavaRDD;
import org.apache.spark.api.java.JavaSparkContext;
import org.apache.spark.api.java.Optional;
import org.apache.spark.api.java.function.Function;
import org.apache.spark.api.java.function.Function2;
import org.apache.spark.api.java.function.PairFunction;
import scala.Tuple2;

import java.util.List;

public class CategoryTop10 {
    public static void main(String[] arg) {
        SparkConf conf = new SparkConf();
        conf.setAppName("CategoryTop10");
        JavaSparkContext sc = new JavaSparkContext(conf);
        JavaRDD<String> textFileRDD = sc.textFile("/spark_data/user_session.txt"); //该地址为虚拟机内文件地址
        JavaPairRDD<Tuple2<String, String>, Integer> transformRDD = textFileRDD
                .mapToPair(
                        new PairFunction<
                                String,
                                Tuple2<String, String>, Integer>() {
                            @Override
                            public Tuple2<Tuple2<String, String>, Integer> call(String s)
                                    throws Exception {
                                JSONObject json = JSONObject.parseObject(s);
                                String category_id = json.getString("category_id");
                                String event_type = json.getString("event_type");
                                return new Tuple2<>(
                                        new Tuple2<>(category_id, event_type),
                                        new Integer(1));
                            }
                        });
        JavaPairRDD<Tuple2<String, String>, Integer> aggregationRDD =
                transformRDD.reduceByKey(
                        new Function2<Integer, Integer, Integer>() {
                            @Override
                            public Integer call(Integer integer1, Integer integer2)
                                    throws Exception {
                                return integer1 + integer2;
                            }
                        });
        JavaPairRDD<String,Integer> getViewCategoryRDD =aggregationRDD
                .filter(new Function<Tuple2<Tuple2<String, String>, Integer>
                        , Boolean>() {
                    @Override
                    public Boolean call(Tuple2<Tuple2<String, String>
                            , Integer> tuple2) throws Exception {
                        String action = tuple2._1._2;
                        return action.equals("view");
                    }
                }).mapToPair(
                        new PairFunction<Tuple2<Tuple2<String, String>
                                , Integer>, String, Integer>() {
                            @Override
                            public Tuple2<String, Integer>
                            call(Tuple2<Tuple2<String, String>, Integer> tuple2)
                                    throws Exception {
                                return new Tuple2<>(tuple2._1._1,tuple2._2);
                            }
                        });
        JavaPairRDD<String,Integer> getCartCategoryRDD = aggregationRDD
                .filter(new Function<Tuple2<Tuple2<String, String>, Integer>
                        , Boolean>() {
                    @Override
                    public Boolean call(Tuple2<Tuple2<String, String>
                            , Integer> tuple2) throws Exception {
                        String action = tuple2._1._2;
                        return action.equals("cart");
                    }
                }).mapToPair(new PairFunction<Tuple2<Tuple2<String, String>
                        , Integer>, String, Integer>() {
                    @Override
                    public Tuple2<String, Integer>
                    call(Tuple2<Tuple2<String, String>, Integer> tuple2)
                            throws Exception {
                        return new Tuple2<>(tuple2._1._1,tuple2._2);
                    }
                });
        JavaPairRDD<String,Integer> getPurchaseCategoryRDD = aggregationRDD
                .filter(new Function<Tuple2<Tuple2<String, String>, Integer>
                        , Boolean>() {
                    @Override
                    public Boolean call(Tuple2<Tuple2<String, String>
                            , Integer> tuple2) throws Exception {
                        String action = tuple2._1._2;
                        return action.equals("purchase");
                    }
                }).mapToPair(new PairFunction<Tuple2<Tuple2<String, String>
                        , Integer>, String, Integer>() {
                    @Override
                    public Tuple2<String, Integer>
                    call(Tuple2<Tuple2<String, String>, Integer> tuple2)
                            throws Exception {
                        return new Tuple2<>(tuple2._1._1,tuple2._2);
                    }
                });
        JavaPairRDD<String,Tuple2<Integer, Optional<Integer>>>
                tmpJoinCategoryRDD =getViewCategoryRDD
                .leftOuterJoin(getCartCategoryRDD);
        JavaPairRDD<String,
                Tuple2<Tuple2<Integer, Optional<Integer>>,
                        Optional<Integer>>> joinCategoryRDD =
                tmpJoinCategoryRDD.leftOuterJoin(getPurchaseCategoryRDD);
        JavaPairRDD<CategorySortKey,String> transCategoryRDD = joinCategoryRDD
                .mapToPair(new PairFunction<Tuple2<String,
                        Tuple2<Tuple2<Integer, Optional<Integer>>,Optional<Integer>>>,
                        CategorySortKey,String>() {
                    @Override
                    public Tuple2<CategorySortKey,String> call(Tuple2<String,
                            Tuple2<Tuple2<Integer, Optional<Integer>>,
                                    Optional<Integer>>> tuple2) throws Exception {
                        String category_id = tuple2._1;
                        int viewcount = tuple2._2._1._1;
                        int cartcount = 0;
                        int purchasecount = 0;
                        if (tuple2._2._1._2.isPresent()){
                            cartcount = tuple2._2._1._2.get().intValue();
                        }
                        if (tuple2._2._2.isPresent()){
                            purchasecount = tuple2._2._2.get().intValue();
                        }
                        CategorySortKey sortKey =
                                new CategorySortKey(viewcount, cartcount, purchasecount);
                        return new Tuple2<>(sortKey,category_id);
                    }
                });
        JavaPairRDD<CategorySortKey,String> sortedCategoryRDD =
                transCategoryRDD.sortByKey(false);
        List<Tuple2<CategorySortKey, String>> top10CategoryList =
                sortedCategoryRDD.take(10);
        //调用top10ToHbase方法
        try {
            top10ToHbase(top10CategoryList);
        } catch (Exception e) {
            e.printStackTrace();
        }
        //关闭HBase数据库连接
        HbaseConnect.closeConnection();
        sc.close();

    }
    public static void top10ToHbase(List<Tuple2<CategorySortKey, String>>
                                            top10CategoryList) throws Exception
    {
        HbaseUtils.createTable("top10","top10_category");
        String[] column =
                {"category_id","viewcount","cartcount","purchasecount"};
        String viewcount = "";
        String cartcount = "";
        String purchasecount = "";
        String category_id = "";
        int count = 0;
        for (Tuple2<CategorySortKey, String> top10: top10CategoryList) {
            count++;
            viewcount = String.valueOf(top10._1.getViewCount());
            cartcount = String.valueOf(top10._1.getCartCount());
            purchasecount = String.valueOf(top10._1.getPurchaseCount());
            category_id = top10._2;
            String[] value =
                    {category_id,viewcount,cartcount,purchasecount};
            HbaseUtils.putsToHBase("top10",
                    "rowkey_top"+count,
                    "top10_category",
                    column,
                    value);
        }
    }
}

封装jar包
在Maven窗口单击展开Lifecycle折叠框，双击Lifecycle折叠框中的“package”选项，IntelliJ IDEA会自动将程序封装成jar包，封装完成后，若出现“BUILD SUCCESS”内容，则证明成功封装热门品类Top10分析程序为jar包。
在项目SparkProject中的target目录下会生成SparkProject-1.0-SNAPSHOT.jar文件，为了便于后续与其它程序区分，这里可将默认文件名称修改为CategoryTop10.jar。

将jar包上传到集群
使用远程连接工具Xftp连接虚拟机Spark01，在存放jar文件的目录/export/SparkJar/（该目录需提前创建）下执行“rz”命令，上传热门品类Top10分析程序的jar包CategoryTop10.jar。

将数据集上传到本地文件系统
使用远程连接工具Xftp连接虚拟机Spark01，在存放数据文件的目录/export/data/SparkData/（该目录需提前创建）下执行“rz”命令，将数据集user_session.txt上传至本地文件系统。

在HDFS创建存放数据集的目录
将数据集上传到HDFS前，需要在HDFS的根目录创建目录spark_data，用于存放数据集user_session.txt

hdfs dfs -mkdir /spark_data

上传数据集到HDFS
将本地文件系统目录/export/data/SparkData/下的数据集user_session.txt上传到HDFS的spark_data目录下。

hdfs dfs -put /export/data/SparkData/user_session.txt /spark_data

提交热门品类Top10分析程序到YARN集群
通过Spark安装目录中bin目录下的shell脚本文件spark-submit提交热门品类Top10分析程序
到Hadoop集群的YARN运行。

spark-submit \
--master yarn \
--deploy-mode cluster \
--num-executors 3 \
--executor-memory 2G \
--class cn.itcast.top10.CategoryTop10 \
/export/SparkJar/CategoryTop10.jar /spark_data/user_session.txt

查看程序运行状态
程序运行时在控制台会生成“Application ID”（程序运行时的唯一ID），在浏览器输入“192.168.121.132:8088”(虚拟机地址替换为你的虚拟机地址)，进入YARN的Web UI界面，通过对应“Application ID”查看程序的运行状态，当程序运行完成后State为FINISHED，并且FinalStatus为SUCCEES。

查看程序运行结果
在虚拟机Spark01执行“hbase shell”命令，进入HBase命令行工具。
在HBase命令行工具中执行“list”命令，查看HBase数据库中的所有数据表。
查看程序运行结果
在HBase命令行工具执行“scan ‘top10’”命令，查询数据表top10中的数据。

各区域热门商品Top3分析

package cn.itcast.Top3;

import cn.itcast.hbase.HbaseConnect;
import cn.itcast.hbase.HbaseUtils;
import com.alibaba.fastjson.JSONObject;
import com.google.common.collect.Lists;
import org.apache.spark.SparkConf;
import org.apache.spark.api.java.JavaPairRDD;
import org.apache.spark.api.java.JavaRDD;
import org.apache.spark.api.java.JavaSparkContext;
import org.apache.spark.api.java.function.Function;
import org.apache.spark.api.java.function.Function2;
import org.apache.spark.api.java.function.PairFunction;
import org.apache.spark.api.java.function.VoidFunction;
import scala.Tuple2;

import java.io.IOException;
import java.util.*;

public class AreaProductTop3 {
    public static void main(String[] arg){
        SparkConf conf = new SparkConf();
        conf.setAppName("AreaProductTop3");
        JavaSparkContext sc = new JavaSparkContext(conf);
        JavaRDD<String> textFileRDD = sc.textFile("/spark_data/user_session.txt"); //该地址为虚拟机内文件地址
        JavaPairRDD<Tuple2<String, String>, String> transProductRDD =
                textFileRDD.mapToPair(new PairFunction<String,
                        Tuple2<String, String>,
                        String>() {
                    @Override
                    public Tuple2<Tuple2<String, String>, String> call(String s)
                            throws Exception {
                        JSONObject json = JSONObject.parseObject(s);
                        String address_name =
                                json.getString("address_name").replaceAll("\\u00A0+", "");//replaceAll("\\u00A0+","")去除特殊空字符
                        String product_id = json.getString("product_id");
                        String event_type = json.getString("event_type");
                        Tuple2<Tuple2<String, String>, String> tuple2 =
                                new Tuple2<>(
                                        new Tuple2<>(address_name, product_id),
                                        event_type);
                        return tuple2;
                    }
                });
        JavaPairRDD<Tuple2<String, String>, String> getViewRDD =
                transProductRDD.filter(new Function<Tuple2<
                        Tuple2<String, String>, String>, Boolean>() {
                    @Override
                    public Boolean call(
                            Tuple2<Tuple2<String, String>, String> tuple2)
                            throws Exception {
                        String event_type = tuple2._2;
                        return event_type.equals("view");
                    }
                });
        JavaPairRDD<Tuple2<String,String>,Integer> productByAreaRDD =
                getViewRDD.mapToPair(
                        new PairFunction<Tuple2<Tuple2<String, String>, String>,
                                Tuple2<String, String>,
                                Integer>() {
                            @Override
                            public Tuple2<Tuple2<String, String>, Integer> call(
                                    Tuple2<Tuple2<String, String>, String> tuple2)
                                    throws Exception {
                                return new Tuple2<>(tuple2._1,new Integer(1));
                            }
                        });
        JavaPairRDD<Tuple2<String,String>,Integer> productCountByAreaRDD =
                productByAreaRDD.reduceByKey(
                        new Function2<Integer, Integer, Integer>() {
                            @Override
                            public Integer call(Integer integer, Integer integer2)
                                    throws Exception {
                                return integer+integer2;
                            }
                        });
        JavaPairRDD<String,Tuple2<String,Integer>> transProductCountByAreaRDD =
                productCountByAreaRDD.mapToPair(
                        new PairFunction<Tuple2<
                                Tuple2<String, String>, Integer>,
                                String,
                                Tuple2<String, Integer>>() {
                            @Override
                            public Tuple2<String, Tuple2<String, Integer>> call(
                                    Tuple2<Tuple2<String, String>, Integer> tuple2)
                                    throws Exception {
                                return new Tuple2<>(tuple2._1._1,
                                        new Tuple2<>(tuple2._1._2,tuple2._2));
                            }
                        });
        JavaPairRDD<String, Iterable<Tuple2<String, Integer>>>
                productGroupByAreaRDD = transProductCountByAreaRDD.groupByKey();


        JavaPairRDD<String, Iterable<Tuple2<String, Integer>>>
                productSortByAreaRDD =productGroupByAreaRDD.mapToPair(
                new PairFunction<
                        Tuple2<String, Iterable<Tuple2<String, Integer>>>,
                        String,
                        Iterable<Tuple2<String, Integer>>>() {
                    @Override
                    public Tuple2<String, Iterable<Tuple2<String, Integer>>>
                    call(Tuple2<String, Iterable<Tuple2<String, Integer>>> tuple2)
                            throws Exception {
                        List<Tuple2<String,Integer>> list = new ArrayList<>();
                        Iterator<Tuple2<String,Integer>> iter =
                                tuple2._2.iterator();
                        while (iter.hasNext()){
                            list.add(iter.next());
                        }
                        list.sort(new Comparator<Tuple2<String, Integer>>() {
                            @Override
                            public int compare(
                                    Tuple2<String, Integer> o1,
                                    Tuple2<String, Integer> o2) {
                                return o2._2 - o1._2;
                            }
                        });
                        return new Tuple2<>(tuple2._1,list);
                    }
                });
        JavaPairRDD<String, Iterable<Tuple2<String, Integer>>> top3AreaProductRDD
                =productSortByAreaRDD.mapToPair(new PairFunction<
                Tuple2<String, Iterable<Tuple2<String, Integer>>>,
                String,
                Iterable<Tuple2<String, Integer>>>() {
            @Override
            public Tuple2<String, Iterable<Tuple2<String, Integer>>>
            call(Tuple2<String, Iterable<Tuple2<String, Integer>>> tuple2)
                    throws Exception {
                List<Tuple2<String,Integer>> list = new ArrayList<>();
                Iterator<Tuple2<String,Integer>> iter
                        = tuple2._2.iterator();
                int i = 0;
                while (iter.hasNext()){
                    list.add(iter.next());
                    i++;
                    if (i == 3){
                        break;
                    }
                }
                return new Tuple2<>(tuple2._1,list);
            }
        });
        try {
            top3ToHbase(top3AreaProductRDD);
        } catch (IOException e) {
            e.printStackTrace();
        }
        HbaseConnect.closeConnection();
        sc.close();
    }
    public static void top3ToHbase(
            JavaPairRDD<String, Iterable<Tuple2<String, Integer>>> rdd)
            throws IOException {
        HbaseUtils.createTable("top3","top3_area_product");
        String[] column =
                {"area","product_id","viewcount"};
        rdd.foreach(
                new VoidFunction<
                        Tuple2<String,
                                Iterable<Tuple2<String, Integer>>>>()
                {
                    @Override
                    public void call(
                            Tuple2<String, Iterable<Tuple2<String, Integer>>>
                                    tuple2) throws Exception {
                        String area = tuple2._1;
                        String product_id = "";
                        String viewcount = "";
                        Iterator<Tuple2<String,Integer>> iter =
                                tuple2._2.iterator();
                        List<Tuple2<String,Integer>> myList =
                                Lists.newArrayList(iter);
                        for (Tuple2<String,Integer> tuple : myList) {
                            product_id = tuple._1;
                            viewcount = String.valueOf(tuple._2);
                            String [] value =  {area,product_id,viewcount};
                            try {
                                HbaseUtils.putsToHBase(
                                        "top3",
                                        area+product_id,
                                        "top3_area_product",
                                        column,
                                        value);
                            } catch (Exception e) {
                                e.printStackTrace();
                            }
                        }
                    }
                });
    }
}

封装jar包
由于在封装热门品类Top10分析程序jar包时，将程序主类指向了“cn.itcast.top10.CategoryTop10”，因此这里需要将pom.xml文件中的程序主类修改为“cn.itcast.top3.AreaProductTop3”。根据封装热门品类Top10分析程序jar包的方式封装各区域热门商品Top3分析程序。将封装完成的jar包重命名为“AreaProductTop3”，通过远程连接工具Xftp将AreaProductTop3.jar上传到虚拟机Spark01的/export/SparkJar/目录下。

提交各区域热门商品Top3分析程序到YARN集群
通过Spark安装目录中bin目录下的shell脚本文件spark-submit提交各区域热门商品Top3分析程序到YARN集群运行。

spark-submit \
--master yarn \
--deploy-mode cluster \
--num-executors 3 \
--executor-memory 2G \
--class cn.itcast.top3.AreaProductTop3 \
/export/SparkJar/AreaProductTop3.jar /spark_data/user_session.txt

查看程序运行结果
在虚拟机Spark01执行“hbase shell”命令，进入HBase命令行工具。
在HBase命令行工具中执行“list”命令，查看HBase数据库中的所有数据表。
查看程序运行结果
在HBase命令行工具执行“scan ‘top3’”命令，查看数据表top3中所有数据。

网站转化率统计

package cn.itcast.conversion;

import cn.itcast.hbase.HbaseConnect;
import cn.itcast.hbase.HbaseUtils;
import org.apache.spark.api.java.JavaRDD;
import org.apache.spark.api.java.function.FlatMapFunction;
import org.apache.spark.api.java.function.ForeachFunction;
import org.apache.spark.sql.*;
import org.apache.spark.sql.types.DataTypes;
import org.apache.spark.sql.types.StructField;
import org.apache.spark.sql.types.StructType;

import java.io.IOException;
import java.util.ArrayList;
import java.util.Iterator;
import java.util.List;

public class PageConversion {
    public static void main(String[] arg){
        SparkSession spark = SparkSession
                .builder()
                .appName("PageConversion")
                .getOrCreate();
        Dataset<Row> userConversionDS = spark.read().json("/page_conversion/user_conversion.json"); //此为数据所在的HDFS位置
        userConversionDS.createOrReplaceTempView("conversion_table");
        Dataset<Row> pageIdPvDS = spark
                .sql("select pageid,count(*) as pageid_count " +
                        "from conversion_table " +
                        "group by pageid");
        Dataset<Row> useridGroupSortDS = spark
                .sql("select userid,actionTime,pageid " +
                        "from conversion_table " +
                        "order by userid,actionTime");
        useridGroupSortDS.createOrReplaceTempView("conversion_group_sort_table");
        JavaRDD<Row> pageConversionRDD = spark.sql("select userid," +
                "concat_ws(',',collect_list(pageid)) as column2s " +
                "from conversion_group_sort_table " +
                "group by userid").toJavaRDD();
        JavaRDD<Row> rowRDD = pageConversionRDD
                .flatMap(new FlatMapFunction<Row, Row>() {
                    @Override
                    public Iterator<Row> call(Row row) throws Exception {
                        List<Row> list = new ArrayList<>();
                        String[] page = row.get(1).toString().split(",");
                        String pageConversionStr = "";
                        for (int i = 0;i<page.length-1;i++){
                            if (!page[i].equals(page[i+1])){
                                pageConversionStr = page[i]+"_"+page[i+1];
                                list.add(RowFactory.create(pageConversionStr));
                            }
                        }
                        return list.iterator();
                    }
                });
        StructType schema = DataTypes
                .createStructType(
                        new StructField[]{
                                DataTypes.createStructField(
                                        "page_conversion",
                                        DataTypes.StringType,
                                        true)});
        spark.createDataFrame(rowRDD, schema)
                .registerTempTable("page_conversion_table");
        spark.sql(
                "select page_conversion," +
                        "count(*) as page_conversion_count " +
                        "from page_conversion_table " +
                        "group by page_conversion")
                .createOrReplaceTempView("page_conversion_count_table");
        Dataset<Row> pageConversionCountDS = spark
                .sql("select page_conversion_count," +
                        "split(page_conversion,'_')[0] as start_page," +
                        "split(page_conversion,'_')[1] as last_page " +
                        "from page_conversion_count_table");
        pageConversionCountDS
                .join(
                        pageIdPvDS,
                        new Column("start_page").equalTo(new Column("pageid")),
                        "left")
                .createOrReplaceTempView("page_conversion_join");
        Dataset<Row> resultDS = spark
                .sql("select " +
                        "concat(pageid,'_',last_page) as conversion," +
                        "round(" +
                        "CAST(page_conversion_count AS DOUBLE)/CAST(pageid_count AS DOUBLE)" +
                        ",3) as rage " +
                        "from page_conversion_join");

        try {
            conversionToHBase(resultDS);
        } catch (IOException e) {
            e.printStackTrace();
        }
        HbaseConnect.closeConnection();
        spark.close();

    }
    public static void conversionToHBase(Dataset<Row> dataset)
            throws IOException {
        HbaseUtils.createTable("conversion","page_conversion");
        String[] column = {"convert_page","convert_rage"};
        dataset.foreach(new ForeachFunction<Row>() {
            @Override
            public void call(Row row) throws Exception {
                String conversion = row.get(0).toString();
                String rage = row.get(1).toString();
                String[] value ={conversion,rage};
                HbaseUtils.putsToHBase("conversion",
                        conversion+rage,
                        "page_conversion",
                        column,
                        value);
            }
        });
    }


}

封装jar包
由于在封装各区域热门商品Top3分析程序jar包时，将程序主类指向了“cn.itcast.top3.AreaProductTop3”，因此这里需要将pom.xml文件中的程序主类修改为“cn.itcast.conversion.PageConversion”。根据封装热门品类Top10分析程序jar包的方式封装页面单跳转化率统计程序。将封装完成的jar包重命名为“PageConversion”，通过远程连接工具SecureCRT将PageConversion.jar上传到虚拟机Spark01的/export/SparkJar/目录下。

将数据集上传到本地文件系统
使用远程连接工具Xftp连接虚拟机Spark01，在存放数据文件的目录/export/data/SparkData/（该目录需提前创建）下执行“rz”命令，将数据集user_conversion.json上传至本地文件系统。

在HDFS创建存放数据集的目录
将数据集上传到HDFS前，需要在HDFS的根目录创建目录page_conversion，用于存放数据集user_conversion.json。

hdfs dfs -mkdir /page_conversion

上传数据集到HDFS
将目录/export/data/SparkData/下的数据集user_conversion.json上传到HDFS的page_conversion目录下，具体命令如下。

hdfs dfs -put /export/data/SparkData/user_conversion.json /page_conversion

提交页面单跳转化率统计程序到YARN集群
通过Spark安装目录中bin目录下的shell脚本文件spark-submit提交页面单跳转化率统计程序到YARN集群运行

spark-submit \
--master yarn \
--deploy-mode cluster \
--num-executors 3 \
--executor-memory 2G \
--class cn.itcast.conversion.PageConversion \
/export/SparkJar/PageConversion.jar /page_conversion/user_conversion.json

查看程序运行结果
在虚拟机Spark01执行“hbase shell”命令，进入HBase命令行工具。
在HBase命令行工具中执行“list”命令，查看HBase数据库中的所有数据表。
在HBase命令行工具执行“scan ‘conversion’”命令，查看数据表conversion中所有数据。

广告点击流实时统计

打开HBase命令行工具
打开虚拟机启动大数据集群环境（此时可以不启动使用远程连接工具SecureCRT连接虚拟机Spark01，执行“hbase shell”命令进入HBase的命令行工具。

创建表blacklist
通过HBase的命令行工具创建表blacklist并指定列族为black_user，用于存储黑名单用户数据。

create 'blacklist','black_user'

插入黑名单用户
通过HBase的命令行工具在表blacklist的列族black_user下插入黑名单用户，指定uerid为33、44和55的用户为黑名单用户。

put 'blacklist', 'user33', 'black_user:userid', '33'
put 'blacklist', 'user44', 'black_user:userid', '44'
put 'blacklist', 'user55', 'black_user:userid', '55'

创建表adstream
通过HBase的命令行工具创建表adstream并指定列族为area_ads_count，用于存储用户广告点击流实时统计结果。

create 'adstream','area_ads_count'

实现Kafka生产者
在项目SparkProject的java目录新建Package包“cn.itcast.streaming”，用于存放广告点击流实时统计的Java文件，并在该包中创建Java类文件MockRealTime，用于实现Kafka生产者，生产用户广告点击流数据。

启动Kafka消费者
打开虚拟机启动大数据集群环境（包括Kafka），使用远程连接工具Xshell连接虚拟机Spark01，进入Kafka安装目录（/export/servers/kafka_2.11-2.0.0）启动Kafka消费者。

bin/kafka-console-consumer.sh \
--bootstrap-server spark01:9092,spark02:9092,spark03:9092 \
--topic ad

查看Kafka消费者
在虚拟机Spark01的Kafka消费者窗口查看数据是否被成功接收。

关闭Kafka消费者
在虚拟机Spark01的Kafka消费者窗口通过组合键“Ctrl+C”关闭当前消费者。

关闭Kafka生产者

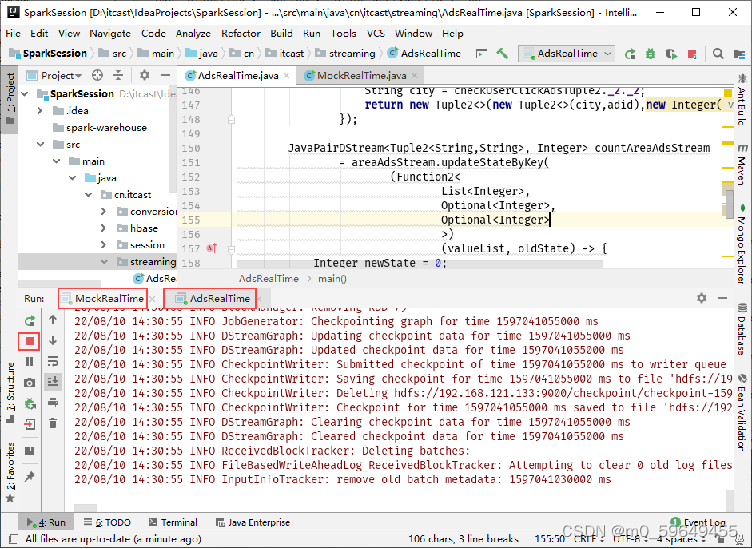

在IntelliJ IDEA控制台中单击红色方框的按钮关闭Kafka生产者程序，关闭Kafka生产者程序。

下面的程序放在同一个包streaming中

package cn.itcast.streaming;

import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerRecord;
import java.util.*;
public class MockRealTime {
    public static void main(String[] arg) throws InterruptedException {
        String topic = "ad";
        //创建Kafka生产者
        KafkaProducer<String,String> producer = createKafkaProducer();
        //每隔1秒向指定topic发送用户广告点击流数据
        while (true){
            producer.send(new ProducerRecord<>(topic,mockRealTimeData()));
            Thread.sleep(1000);
        }
    }
    public static KafkaProducer<String,String> createKafkaProducer(){
        //创建Properties对象，用于配置Kafka
        Properties props = new Properties();
        //指定服务器地址
        props.put("bootstrap.servers",
                "hadoop1:9092,hadoop2:9092,hadoop3:9092");//注意9092前面的hadoop123修改为你的虚拟机名
        //序列化key
        props.put("key.serializer",
                "org.apache.kafka.common.serialization.StringSerializer");
        //序列化value
        props.put("value.serializer",
                "org.apache.kafka.common.serialization.StringSerializer");
        //Leader接收到消息后，需保证保持同步的Follower也同步消息，默认参数为1
        props.put("acks", "all");
        //创建Kafka生产者对象KafkaProducer
        KafkaProducer<String,String> kafkaProducer
                = new KafkaProducer<String, String>(props);
        return kafkaProducer;
    }
    public static String mockRealTimeData() throws InterruptedException {
        Random random = new Random();
        String[] cityArray = {
                "beijing",
                "tianjing",
                "shanghai",
                "chongqing",
                "shenzhen",
                "guangzhou",
                "nanjing",
                "chengdu",
                "zhengzhou",
                "hefei",
                "wuhan"
        };
        long time = System.currentTimeMillis();
        String city = cityArray[random.nextInt(cityArray.length)];
        String userid = String.valueOf(random.nextInt(100));
        String adid = String.valueOf(random.nextInt(10));
        String userAd = time + "," + userid + "," + adid + "," + city;
        Thread.sleep(10);
        return userAd;
    }
}

package cn.itcast.streaming;

import cn.itcast.hbase.HbaseConnect;
import cn.itcast.hbase.HbaseUtils;
import org.apache.hadoop.hbase.client.Result;
import org.apache.hadoop.hbase.client.ResultScanner;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.common.serialization.StringDeserializer;
import org.apache.spark.SparkConf;
import org.apache.spark.api.java.JavaPairRDD;
import org.apache.spark.api.java.Optional;
import org.apache.spark.api.java.function.Function;
import org.apache.spark.api.java.function.Function2;
import org.apache.spark.api.java.function.PairFunction;
import org.apache.spark.api.java.function.VoidFunction;
import org.apache.spark.streaming.Durations;
import org.apache.spark.streaming.api.java.JavaInputDStream;
import org.apache.spark.streaming.api.java.JavaPairDStream;
import org.apache.spark.streaming.api.java.JavaStreamingContext;
import org.apache.spark.streaming.kafka010.ConsumerStrategies;
import org.apache.spark.streaming.kafka010.KafkaUtils;
import org.apache.spark.streaming.kafka010.LocationStrategies;
import scala.Tuple2;
import java.io.IOException;
import java.util.*;

public class AdsRealTime {
    public static void main(String[] arg) throws IOException,
            InterruptedException {
        System.setProperty("HADOOP_USER_NAME","root");
        SparkConf conf = new SparkConf()
                //配置Spark Streaming程序运以本地方式运行
                .setMaster("local[2]")
                .setAppName("stream_ad");
        //配置Spark Streaming程序间隔5秒消费Kafka生产者生产的用户广告点击流数据
        JavaStreamingContext jsc =
                new JavaStreamingContext(conf, Durations.seconds(5));
        jsc.checkpoint("hdfs://192.168.253.101:9000/checkpoint");//注意将9000前面的虚拟机地址修改为你的虚拟机地址
        //指定Kafka消费者的topic
        final Collection<String> topics = Arrays.asList("ad");
        Map<String, Object> kafkaParams = new HashMap<>();
        //Kafka服务监听端口
        kafkaParams.put("bootstrap.servers",
                "hadoop1:9092,hadoop2:9092,hadoop3:9092");//注意9092前面的hadoop123修改为你的虚拟机名
        //指定kafka输出key的数据类型及编码格式（默认为字符串类型编码格式为uft-8）
        kafkaParams.put("key.deserializer", StringDeserializer.class);
        //指定kafka输出value的数据类型及编码格式（默认为字符串类型编码格式为uft-8）
        kafkaParams.put("value.deserializer", StringDeserializer.class);
        //消费者组名称,随便指定一个名称即可
        kafkaParams.put("group.id", "adstream");
        //表示如果有offset记录就从offset记录开始消费,
        // 如果没有就从最新的数据开始消费,offset是用来记录消费到哪一条数据了
        kafkaParams.put("auto.offset.reset", "latest");
        //消费者定期自动提交offset到ZooKeeper
        kafkaParams.put("enable.auto.commit", true);
        JavaInputDStream<ConsumerRecord<String, String>> userAdStream =
                KafkaUtils.createDirectStream(
                        jsc,
                        LocationStrategies.PreferConsistent(),
                        ConsumerStrategies.<String, String>Subscribe(topics, kafkaParams)
                );
        JavaPairDStream<String,Tuple2<String,String>> userClickAdsStream =
                userAdStream.mapToPair(
                        (PairFunction<
                                ConsumerRecord<String, String>,
                                String,
                                Tuple2<String, String>
                                >)
                                record -> {
                                    //将获取的每一行数据record通过分隔符“，”进行切分，生成数组value
                                    String[] value = record.value().split(",");
                                    String userid =value[1];
                                    String adid =value[2];
                                    String city =value[3];
                                    return new Tuple2<>(userid,new Tuple2<>(adid,city));
                                });
        JavaPairRDD<String,String> blackUserRDD =
                jsc.sparkContext().parallelizePairs(getBlackUser());
        JavaPairDStream<String,Tuple2<String,String>> checkUserClickAdsStream
                = userClickAdsStream.transformToPair(
                (Function<
                        JavaPairRDD<String, Tuple2<String, String>>,
                        JavaPairRDD<String, Tuple2<String, String>>>)
                        userClickAdsRDD -> {
                            JavaPairRDD<String, Tuple2<Tuple2<String, String>, Optional<String>>>
                                    joinBlackAdsUserRDD = userClickAdsRDD.leftOuterJoin(blackUserRDD);
                            JavaPairRDD<String, Tuple2<Tuple2<String, String>, Optional<String>>>
                                    filterBlackAdsUserRDD = joinBlackAdsUserRDD.filter(
                                    (Function<Tuple2<String, Tuple2<Tuple2<String, String>,
                                            Optional<String>>>,
                                            Boolean>)
                                            joinBlackAdsUserTuple2 ->
                                                    !joinBlackAdsUserTuple2._2._2.isPresent());
                            JavaPairRDD<String, Tuple2<String, String>> mapBlackAdsUserRDD
                                    = filterBlackAdsUserRDD.mapToPair((PairFunction<Tuple2<String,
                                    Tuple2<Tuple2<String, String>,
                                            Optional<String>>>,
                                    String,
                                    Tuple2<String, String>>)
                                    filterBlackAdsUserTuple2 ->
                                            new Tuple2<>(
                                                    filterBlackAdsUserTuple2._1,
                                                    new Tuple2<>(
                                                            filterBlackAdsUserTuple2._2._1._1,
                                                            filterBlackAdsUserTuple2._2._1._2)));
                            return mapBlackAdsUserRDD;
                        });
        JavaPairDStream<Tuple2<String,String>, Integer> areaAdsStream
                = checkUserClickAdsStream.mapToPair(
                (PairFunction<
                        Tuple2<String, Tuple2<String, String>>,
                        Tuple2<String, String>,
                        Integer>) checkUserClickAdsTuple2 -> {
                    String adid = checkUserClickAdsTuple2._2._1;
                    String city = checkUserClickAdsTuple2._2._2;
                    return new Tuple2<>(new Tuple2<>(city,adid),new Integer(1));
                });
        JavaPairDStream<Tuple2<String,String>, Integer> countAreaAdsStream
                = areaAdsStream.updateStateByKey(
                (Function2<
                        List<Integer>,
                        Optional<Integer>,
                        Optional<Integer>
                        >)
                        (valueList, oldState) -> {
                            Integer newState = 0;
                            if (oldState.isPresent()){
                                newState = oldState.get();
                            }
                            for (Integer value : valueList){
                                newState += value;
                            }
                            return Optional.of(newState);
                        });
        JavaPairDStream<String,Integer> userStream = checkUserClickAdsStream
                .mapToPair(
                        (PairFunction<Tuple2<String, Tuple2<String, String>>,
                                String, Integer>) checkUserClickAdsTuple2 ->
                                new Tuple2<>(
                                        checkUserClickAdsTuple2._1,
                                        new Integer(1)));
        JavaPairDStream<String, Integer> countUserStream
                = userStream.updateStateByKey(
                (Function2<
                        List<Integer>,
                        Optional<Integer>,
                        Optional<Integer>
                        >)
                        (valueList, oldState) -> {
                            Integer newState = 0;
                            if (oldState.isPresent()){
                                newState = oldState.get();
                            }
                            for (Integer value : valueList){
                                newState += value;
                            }
                            return Optional.of(newState);
                        });
        countUserStream.foreachRDD((VoidFunction<JavaPairRDD<String, Integer>>)
                countUserRDD ->
                        countUserRDD.foreach((VoidFunction<Tuple2<String, Integer>>)
                                countUserTuple2 -> {
                                    if (countUserTuple2._2>100){
                                        HbaseUtils.putsOneToHBase(
                                                "blacklist",
                                                "user"+countUserTuple2._1,
                                                "black_user",
                                                "userid",
                                                countUserTuple2._1);
                                    }
                                }));
        countAreaAdsStream.foreachRDD((
                VoidFunction<
                        JavaPairRDD<
                                Tuple2<String, String>,
                                Integer>>
                ) countAreaAdsRDD ->
                countAreaAdsRDD
                        .foreach(
                                (VoidFunction<
                                        Tuple2<
                                                Tuple2<String, String>
                                                , Integer>>)
                                        countAreaAdsTuple2 -> {
                                            //获取广告ID
                                            String adid = countAreaAdsTuple2._1._2;
                                            //获取城市名称
                                            String city = countAreaAdsTuple2._1._1;
                                            //获取广告在城市中的点击次数
                                            int count = countAreaAdsTuple2._2;
                                            HbaseUtils.putsOneToHBase("adstream",
                                                    city+"_"+adid,
                                                    "area_ads_count",
                                                    "area",
                                                    city);
                                            HbaseUtils.putsOneToHBase("adstream",
                                                    city+"_"+adid,
                                                    "area_ads_count",
                                                    "ad",
                                                    adid);
                                            HbaseUtils.putsOneToHBase("adstream",
                                                    city+"_"+adid,
                                                    "area_ads_count",
                                                    "count",
                                                    String.valueOf(count));
                                        }));
        jsc.start();
        jsc.awaitTermination();
        HbaseConnect.closeConnection();
        jsc.close();
    }
    public static ArrayList getBlackUser() throws IOException {
        //获取黑名单用户数据
        ResultScanner blcakResult = HbaseUtils.scan("blacklist");
        Iterator<Result> blackIterator = blcakResult.iterator();
        ArrayList<Tuple2<String,String>> blackList = new ArrayList<>();
        //遍历迭代器blackIterator将黑名单用户添加到集合blackList
        while (blackIterator.hasNext()){
            String blackUserId = new String(blackIterator.next().value());
            blackList.add(new Tuple2<>(blackUserId,"black"));
        }
        return blackList;
    }

}

启动集群环境
启动Kafka生产者程序
启动用户广告点击流实时统计程序
Kafka生产者程序和用户广告点击流实时统计程序启动成功后，可在IDEA的控制台查看程序运行状态。

使用远程连接工具Xshell连接虚拟机Spark01，执行“hbase shell”命令，进入HBase命令行工具，在HBase命令行工具中执行“scan ‘adstream’”命令，查看HBase数据库中表adstream的统计结果。
