前言

相比于去年第一次接触数学建模，经过一年的学习锻炼，对于处理问题的手段方法都有了全面的了解，能力有了较大的提高，本次美赛可以很明显的感受到进步与成长，所以无论结果如何，都是值得纪念的事情

数据处理

依然使用mysql，sqlalchemy来进行处理，matplotlib画图

from sqlalchemy import MetaData,Table
from sqlalchemy import create_engine
# declarative_base类维持了一个从类到表的关系
from sqlalchemy.ext.declarative import declarative_base
from sqlalchemy.orm import sessionmaker
from sqlalchemy import distinct,func,desc
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
import random

### init
# 1.创建数据库连接引擎，echo设置为True表示开启生成所有的SQLAlchemy日志记录
# create_engine()并没有建立与DBAPI的连接
# 可以直接向数据库发送sql
engine = create_engine("mysql+pymysql://root:000422@localhost:3306/2021icmd?charset=utf8",echo=False)
# 2.声明一个数据库映射（生成一个SQLORM基类）
Base = declarative_base()
#获取元数据（绑定引擎，将引擎连接的数据库数据取出）
md = MetaData(bind=engine)

# 创建一个实例类继承基类
class influence_data(Base):
    #第一个参数是数据表名，第二个参数是元数据，第三个参数表示自动加载
    __table__ = Table("influence_data",md,autoload=True) # 加载数据
class full_music_data(Base):
    __table__ = Table("full_music_data",md,autoload=True) # 加载数据
class data_by_year(Base):
    __table__ = Table("data_by_year",md,autoload=True) # 加载数据
class data_by_artist(Base):
    __table__ = Table("data_by_artist",md,autoload=True) # 加载数据
# class sum_influence_data(Base):
#     __table__ = Table("sum_influence_data",md,autoload=True) # 加载数据
# 创建一个会话工厂，参数的意思是绑定我们之前连接的数据库
Session = sessionmaker(bind=engine)
# 创建会话实例
session = Session()

### function
def get_num_of_influencer():
    num=session.query(distinct(influence_data.influencer_name)).count()
    # for i in num:
    #     print(i.influencer_name)
    print(num)
    return num
def get_num_of_follower():
    num=session.query(distinct(influence_data.follower_name)).count()
    # for i in num:
    #     print(i.influencer_name)
    print(num)
    return num
def get_follower_num_of_influencer():
    rows = session.query(influence_data.influencer_name, func.count('*').label("follower_num")).group_by(influence_data.influencer_name).all()
    dic={}
    for row in rows:
        if row.follower_num in dic.keys():
            dic[row.follower_num]=dic[row.follower_num]+1
        else:
            dic[row.follower_num]=1

    print(max(dic.keys()))
    for i in range(1,11):
        print(i,dic[i])


    fig = plt.figure(tight_layout=True)
    gs = gridspec.GridSpec(2, 2)

    ax = fig.add_subplot(gs[:, 0])
    keys=sorted(dic)
    values=[]
    for i in keys:
        values.append(dic[i])
    print(len(keys))
    print(keys)
    print(values)
    ax.bar(keys[0:20],values[0:20])
    ax.set_xlabel('num of followers')
    ax.set_ylabel('num of influencers')

    ax = fig.add_subplot(gs[0, 1])
    ax.bar(keys[20:50],values[20:50])
    ax = fig.add_subplot(gs[1, 1])
    ax.bar(keys[50:],values[50:])
    fig.align_labels()  # same as fig.align_xlabels(); fig.align_ylabels()

    plt.show()


    # plt.bar(dic.keys(),dic.values())
    # # plt.xlim([0,250])  # x轴边界
    # # plt.ylim([0,400])  # y轴边界
    # plt.title('A map of the number of influencers')
    # plt.xlabel('num of followers')
    # plt.ylabel('num of influencers')
    # plt.show()
def get_rank_follower_nums():
    rows = session.query(influence_data.influencer_name, func.count('*').label("follower_num")).group_by(influence_data.influencer_name).order_by(desc("follower_num")).all()
    names=[]
    nums=[]
    for row in rows[0:10]:
        names.append(row.influencer_name)
        nums.append(row.follower_num)
        print(row.influencer_name,row.follower_num)
    plt.bar(names,nums)
    plt.title('Top ten artists with the most influence ')
    plt.xlabel('artists')
    plt.xticks( fontsize=4)
    plt.ylabel('num of followers')
    plt.show()
def get_during_time():
    rows = session.query(influence_data.influencer_name, func.max(influence_data.follower_active_start).label("end_time"),
    func.min(influence_data.follower_active_start).label("start_time")
    ).group_by(influence_data.influencer_name).all()

    dic={}
    for row in rows:
        time=int(row.end_time)-int(row.start_time)+10
        if time in dic.keys():
            dic[time]=dic[time]+1
        else:
            dic[time]=1
    for i in sorted(dic.keys()):
        print("持续时间：",i,"人数：",dic[i])
    keys = list(dic.keys())
    values= list(dic.values())
    values_pop=[]
    values_not_pop=[]
    for i in values:
        k=random.random()
        if k>0.5:
            values_pop.append(i*k)
            values_not_pop.append(i*(1-k))
        else:
            k=k+0.3
            values_pop.append(i*k)
            values_not_pop.append(i*(1-k))
    Pop_std = [10, 5, 4, 3, 2,1,1,1,0]
    notPop_std = [10, 5, 4, 3, 2,1,1,1,0]
    width = 4.5
    fig, ax = plt.subplots()

    ax.bar(keys, values_pop, width,  label='Pop/Rock')
    ax.bar(keys, values_not_pop, width, bottom=values_pop,
        label='Other genre')

    ax.set_ylabel('num of influencers')
    ax.set_title('Artist influence time statistics chart')
    ax.legend()
    ax.set_xlabel('years')
    plt.show()

def get_max_during_time_name():
    rows = session.query(influence_data.influencer_name,(func.max(influence_data.follower_active_start)-
    func.min(influence_data.follower_active_start)).label("during_time")
    ).group_by(influence_data.influencer_name).order_by(desc("during_time")).all()
    names=[]
    nums=[]
    for row in rows[0:10]:
        names.append(row.influencer_name)
        nums.append(row.during_time)
        print(row.influencer_name,row.during_time)
def get_ng():
    rows = session.query(influence_data.influencer_name,func.count(distinct(influence_data.follower_main_genre)).label("ng")
    ).group_by(influence_data.influencer_name).order_by(desc("ng")).all()
    dic={}
    for row in rows:
        ng=row.ng
        if ng in dic.keys():
            dic[ng]=dic[ng]+1
        else:
            dic[ng]=1
    for i in sorted(dic.keys()):
        print("ng数：",i,"人数：",dic[i])

    plt.bar(dic.keys(),dic.values())
    plt.title('ng value distribution chart ')
    plt.xlabel('num of ng')
    plt.ylabel('num of influencers')
    plt.show()
def get_maxng_name():
    rows = session.query(influence_data.influencer_name,func.count(distinct(influence_data.follower_main_genre)).label("ng")
    ).group_by(influence_data.influencer_name).order_by(desc("ng")).all()
    names=[]
    nums=[]
    for row in rows[0:10]:
        names.append(row.influencer_name)
        nums.append(row.ng)
        print(row.influencer_name,row.ng)
    plt.bar(names,nums)
    plt.title('Top ten artists with the most ng value ')
    plt.xlabel('artists')
    plt.xticks( fontsize=5)
    plt.ylabel('num of ng')
    plt.ylim([6,16])  # y轴边界
    plt.show()


# row=session.query(func.max(influence_data.follower_active_start)).first()
# print(row[0])
# print(type(row)
# get_num_of_influencer()
# get_num_of_follower()
# get_follower_num_of_influencer()
# get_rank_follower_nums()
get_during_time()
# get_max_during_time_name()
# get_maxng_name()
# get_ng()

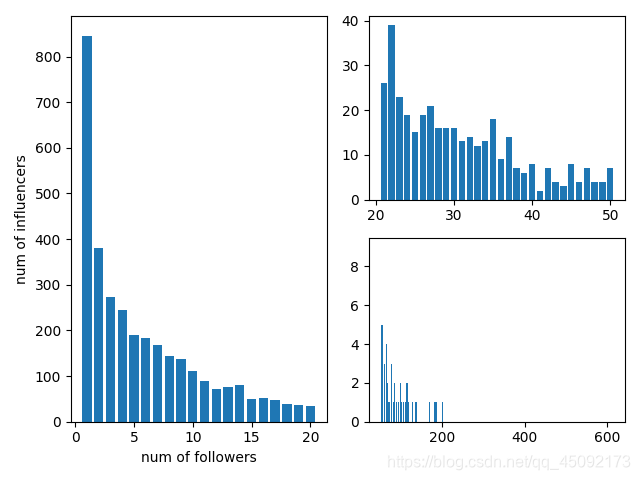

一些分析效果图如下：

模型搭建

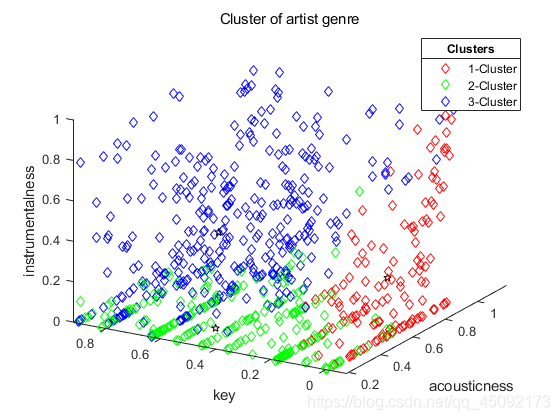

对于D的任务点3，使用了isodata算法的聚类分析：
matlab代码：

clear;
clc;
%   一、载入待分类的样本模式集
load data.mat
load year.mat
%设置控制参数
C = 16;%预期类数
Nc = 3 ;%初始聚类中心个数
Tn =10;%每一类的最少模式数目
Ts = 0.0028;%类内距离标准差上界
Td = 0.5;%类间最小距离下界
L = 2;%在每次迭代中可以合并的类的最多对数
I = 300;%允许的最大迭代次数
Ip = 1;%初始迭代次数

%获取样本的长度,维数
[N,W] = size(data);

%选取初始聚类中心
R=randperm(N);
Sample=data;
Z = zeros(Nc,W);  %聚类中心
for i = 1:Nc
    Z(i,:) = Sample(R(i),:);
end
% 随机选出Nc个类中心

%绘制样本
% grid on;
hold on
% plot(X,Y,'mo');



%开始迭代
while(Ip <= I)
    t = 1;
    while(t)
        %   二、按最短距离归类，划分样本，死循环
        di = zeros(N,Nc);
        for i = 1:N
            for j = 1:Nc
                di(i,j) = norm(Sample(i,:) - Z(j,:));
            end
        end
        % di计算所有样本到中心点距离

        dn = zeros(N,1);
        for i = 1:N
            [m ,n] = min(di(i,:));% m为最短距离，n为所在位置
            dn(i,1) = n;%归类
        end
        % dn 记录每一个样本所属的类

        %   三、根据Tn，即每类中允许的最少模式
        ni = zeros(Nc,1);%各个聚类中心含有的样本数目
        for i = 1:Nc
            ni(i,1) = length(find(dn == i));%个数
            if ni(i,1) < Tn
                Nc = Nc-1;
                Z(i,:) = 0;
            end
        end
        % 把小于Tn的全部解散

        v = find(Z(:,1)~=0);

        K = zeros(Nc,W);
        for i = 1:Nc
            K(i,:) = Z(v(i),:);
        end
        Z = K;%合并后的聚类中心

        if Nc >= j  %相等时，说明每类样本数满足参数要求
            % j 是初始nc数
            break
        end
    end


    %设置颜色
    colour = zeros(Nc,3);
    for i = 1:Nc
        colour(i,:) = rand(1,3);
    end

    %  四、计算分类后的参数：更新聚类中心，类内平均距离，总体平均距离

    %更新聚类中心
    dj = zeros(Nc,1);
    %类内平均距离

    for i = 1:Nc
        v = find(dn == i);%位置
        u = ni(i,1);%个数
        M = zeros(u,W);%用来存储所属同一类的点
        D = zeros(u,1);%用来存储类内距离
        for j = 1:u
            M(j,:) = Sample(v(j),:);
            D(j,1) = norm(M(j,:) - Z(i,:));
        end
        P = plot3(M(:,6),M(:,7),M(:,2),'d');
        set(P,'color',colour(i,:));
        K(i,:) = mean(M);%新的聚类中心
        %计算各类中模式到类心的平均距离dj
        dj(i,1) = mean(D);%类内平均距离
    end
    Z1 = K;
    %Z1 暂存的新的，中心距

    %总体平均距离d
    d = sum(ni.*dj)/N;

    %  五、依据Ip、Nc判断停止，分裂，合并
    if Ip >= I
        Td = 0;
        jump  = 2;%转至9
    elseif Nc <= C/2
        jump  = 1; %转至6
    elseif Nc >= 2*C
        jump  = 2;%转至9
    elseif Nc > C/2 && Nc < 2*C
        if mod(Ip,2) == 1  %如果Ip为奇数
            jump  = 1; %转至6，分裂
        else
            jump  = 2;%转至9 ,合并
        end
    end

    switch  (jump)
        case 1    %%%%%%%%%分裂
            %  六、计算类内距离标准差矢量si, 矢量维数:n = 2;类编号:j = Nc;
            si = zeros(Nc,W);
            for i = 1:Nc
                v = find(dn == i);%位置
                u = ni(i,1);%个数
                sid= zeros(u,W);
                % d1 = zeros(u,1);%X与Z(i,1)做差
                % d2 = zeros(u,1);%X与Z(i,2)做差
                for j = 1:u
                    % d1(j,1) = (x(v(j),:)-Z1(i,1))^2;
                    % d2(j,1) = (y(v(j),:)-Z1(i,2))^2;
                    sid(j,:) = (Sample(v(j),:)-Z1(i,:)).^2;
                end
                % si(i,1) = mean(d1)^(1/2);
                % si(i,2) = mean(d2)^(1/2);
                si(i,:) = mean(sid)./W;
            end

            %  七、对于每一聚类，求出类内距离标准差矢量si中的最大分类simax
            simax = zeros(Nc,2);
            for i = 1:Nc
                [m,n] = max(si(i,:));
                simax(i,1) = m;
                simax(i,2) = n;
            end

            %  八、simax与类内允许的最大类内标准差Ts进行比较
            for i = 1:Nc
                if simax(i,1) > Ts
                    % disp("类内标准差过大，需要分裂")
                    if (dj(i)>d  &&  ni(i)>2*(Tn+1)) || Nc <= C/2
                        Nc = Nc+1;
                        K(Nc,:)=Z1(i,:);
                        K(i,simax(i,2)) = Z1(i,simax(i,2))+ 1.5*simax(i,1);
                        K(Nc,simax(i,2)) = Z1(i,simax(i,2))- 1.5*simax(i,1);
                        % disp(["因为标准差，最大差异维度为：",num2str(simax(i,2))])
                    end
                end
            end
            Z1 = K;%分裂后的
            if i < Nc  %判断是否进行了分裂
                Ip = Ip+1;
                Z = Z1;
            else
                %  九、计算各对聚类中心间的距离（类间距离）Dij
                Dij = zeros(Nc-1,Nc);
                for i = 1:Nc-1
                    for j = i+1:Nc
                        Dij(i,j) = norm(Z1(i,:) - Z1(j,:));
                    end
                end
                %  十、依据Td判断合并 Dij<Td 合并
                k = 1;
                dij = zeros(k,1);
                disp("开始判断合并")
                for i = 1:Nc-1
                    for j = 1:Nc
                        disp( [Dij(i,j),Td])
                        if Dij(i,j) > 0 && Dij(i,j) < Td;
                            disp("类间距离过大，需要合并")
                            dij(k,1) = Dij(i,j);
                            k = k+1;
                        end
                    end
                end
                dij = sort(dij);%排序
                %根据可以合并的最多对数L进行合并
                g = size(dij);
                g = g(1);
                Zi = zeros(L,1);
                Zj = zeros(L,1);
                for i = 1:L
                    if dij(i) == 0
                        break
                    end
                    [Zi(i,1),Zj(i,1)] = find(Dij == dij(i));
                    if  i == 1 || Zi(i,1) ~= Zi(i-1,1)
                        Z1(Zi(i),:) = (ni(Zi(i),1)*Z1(i,:)+ni(Zj(i),1)*Z1(j,:))/(ni(Zi(i),1)+ni(Zj(i),1));
                        Z1(Zj(i),:) = 0;
                        Nc = Nc-1;
                    end
                    g = g-1;
                    if g == 0
                        break
                    end
                end
                v = find(Z1(:,1)~=0);
                K = zeros(Nc,W);
                for i = 1:Nc
                    K(i,:) = Z1(v(i),:);
                end
                Z1 = K;%合并后的聚类中心

                %  十一、判断结束、或调整参数、或继续迭代
                if Ip >= I || (isequal(size(Z1),size(Z)) && abs(sum(sum(Z1-Z)))<0.0001 )
                    Z = Z1;
                    break
                else
                    Ip = Ip+1;
                end
            end
        case 2   %%%%%%%%%合并
            %  九、计算各对聚类中心间的距离（类间距离）Dij
            Dij = zeros(Nc-1,Nc);
            for i = 1:Nc-1
                for j = i+1:Nc
                    Dij(i,j) = norm(Z1(i,:) - Z1(j,:));
                end
            end
            %  十、依据Td判断合并 Dij<Td 合并
            k = 1;
            dij = zeros(k,1);
            disp("开始判断合并")
            for i = 1:Nc-1
                for j = 1:Nc
                    disp( [Dij(i,j),Td])
                    if Dij(i,j) > 0 && Dij(i,j) < Td;
                        disp("类间距离过大，需要合并")
                        dij(k,1) = Dij(i,j);
                        k = k+1;
                    end
                end
            end
            dij = sort(dij);%排序
            % 根据可以合并的最多对数L
            % 进行合并
            g = size(dij);
            g = g(1);
            Zi = zeros(L,1);
            Zj = zeros(L,1);

            for i = 1:L
                if dij == 0
                    %dij 全0
                    break
                end
                [Zi(i,1),Zj(i,1)] = find(Dij == dij(i));
                if  i == 1 || Zi(i,1) ~= Zi(i-1,1)
                    Z1(Zi(i),:) = (ni(Zi(i),1)*Z1(i,:)+ni(Zj(i),1)*Z1(j,:))/(ni(Zi(i),1)+ni(Zj(i),1));
                    Z1(Zj(i),:) = 0;
                    Nc = Nc-1;
                end
                g = g-1;
                if g == 0
                    break
                end
            end
            v = find(Z1(:,1)~=0);
            K = zeros(Nc,W);
            for i = 1:Nc
                K(i,:) = Z1(v(i),:);
            end
            Z1 = K;%合并后的聚类中心

            %  十一、判断结束、或调整参数、或继续迭代
            if Ip >= I || ( isequal(size(Z1),size(Z)) && abs(sum(sum(Z1-Z)))<0.0001 )
                Z = Z1;
                break
            else
                Ip = Ip+1;
            end
    end
end
xlabel('key');  % 添加x轴信息
ylabel('acousticness')   % 添加y轴信息 e^{-x}是显示指数的方法
zlabel('energy');
title('Cluster of data_by_year.csv');  % 添加标题
%显示距离中心
for i = 1:Nc
    plot3(Z(i,6),Z(i,7),Z(i,2),'kp ');
    %legend("Cluster"+num2str(i))
    disp(["属于第",num2str(i),"类的年份有："])
    v=find(dn==i);
    disp(year(v))

end

lgd =legend("1-Cluster","2-Cluster","3-Cluster","4-Cluster")
title(lgd,'Clusters')

效果图：
