基于Hadoop+Spark的医院体检数据可视化分析系统，GitHub星标破千的毕设项目-系统功能介绍

本系统是一个基于Hadoop分布式存储和Spark分布式计算框架构建的医院体检数据可视化分析平台。系统采用大数据技术栈处理海量体检记录，通过Spark SQL进行高效的数据清洗、转换和统计分析，结合机器学习算法对体检指标进行健康风险预测和异常检测。平台具备完整的数据采集、存储、处理和展示能力，支持多维度的体检数据分析，包括各项生理指标的趋势分析、疾病风险评估、人群健康状况统计等功能。系统前端采用现代化的可视化技术，提供直观的图表展示和交互式数据探索界面，后端基于Spring Boot框架构建RESTful API，实现了高并发的数据查询和实时分析能力。整体架构支持弹性扩展，能够适应不断增长的数据量和用户访问需求。

基于Hadoop+Spark的医院体检数据可视化分析系统，GitHub星标破千的毕设项目-系统技术介绍

大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
开发语言：Python+Java（两个版本都支持）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持）
前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery
详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy
数据库：MySQL

基于Hadoop+Spark的医院体检数据可视化分析系统，GitHub星标破千的毕设项目-系统背景意义

随着医疗信息化建设的深入推进和健康管理理念的普及，医院体检业务呈现出快速增长态势，体检数据的规模和复杂性也随之急剧增加。传统的关系型数据库和单机处理模式已经难以应对TB级别的体检数据存储和分析需求，数据孤岛现象严重，各种体检指标之间的关联性分析困难。医院管理者和医务人员迫切需要一种能够整合多源异构体检数据、快速响应复杂查询请求的技术解决方案。同时，随着人工智能和大数据技术在医疗健康领域的广泛应用，利用先进的分布式计算技术挖掘体检数据中的潜在价值、发现健康风险规律已成为医疗信息化发展的重要方向。在这样的技术背景下，构建一个基于Hadoop和Spark的体检数据分析系统具有重要的现实意义。
本课题的研究具有一定的理论价值和实践意义。从技术层面来看，该系统验证了大数据技术在医疗数据处理场景中的可行性，为类似的医疗信息化项目提供了技术参考。从实际应用角度分析，系统能够帮助医院管理人员更好地了解体检业务开展情况，通过数据统计和趋势分析优化资源配置和服务流程。对于医务人员而言，系统提供的健康指标分析和风险评估功能可以辅助临床决策，提高体检报告的科学性和准确性。体检者也能通过可视化的数据展示更直观地了解自身健康状况变化趋势。虽然作为毕业设计项目在规模和复杂度上存在一定局限性，但该系统仍然展现了大数据技术在解决实际业务问题方面的潜力，对于促进医疗数据的有效利用和健康管理水平的提升具有积极作用。

基于Hadoop+Spark的医院体检数据可视化分析系统，GitHub星标破千的毕设项目-系统演示视频

XX

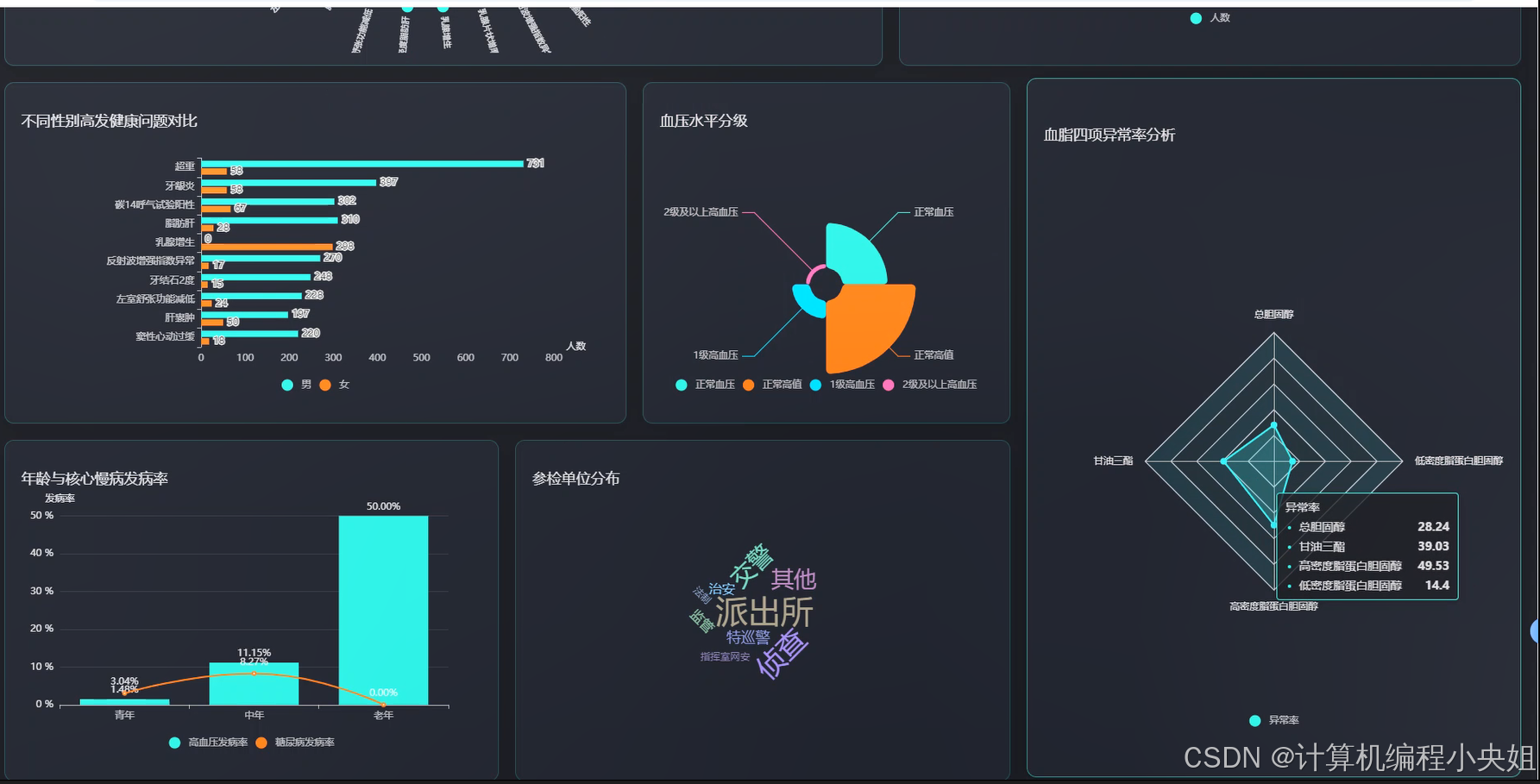

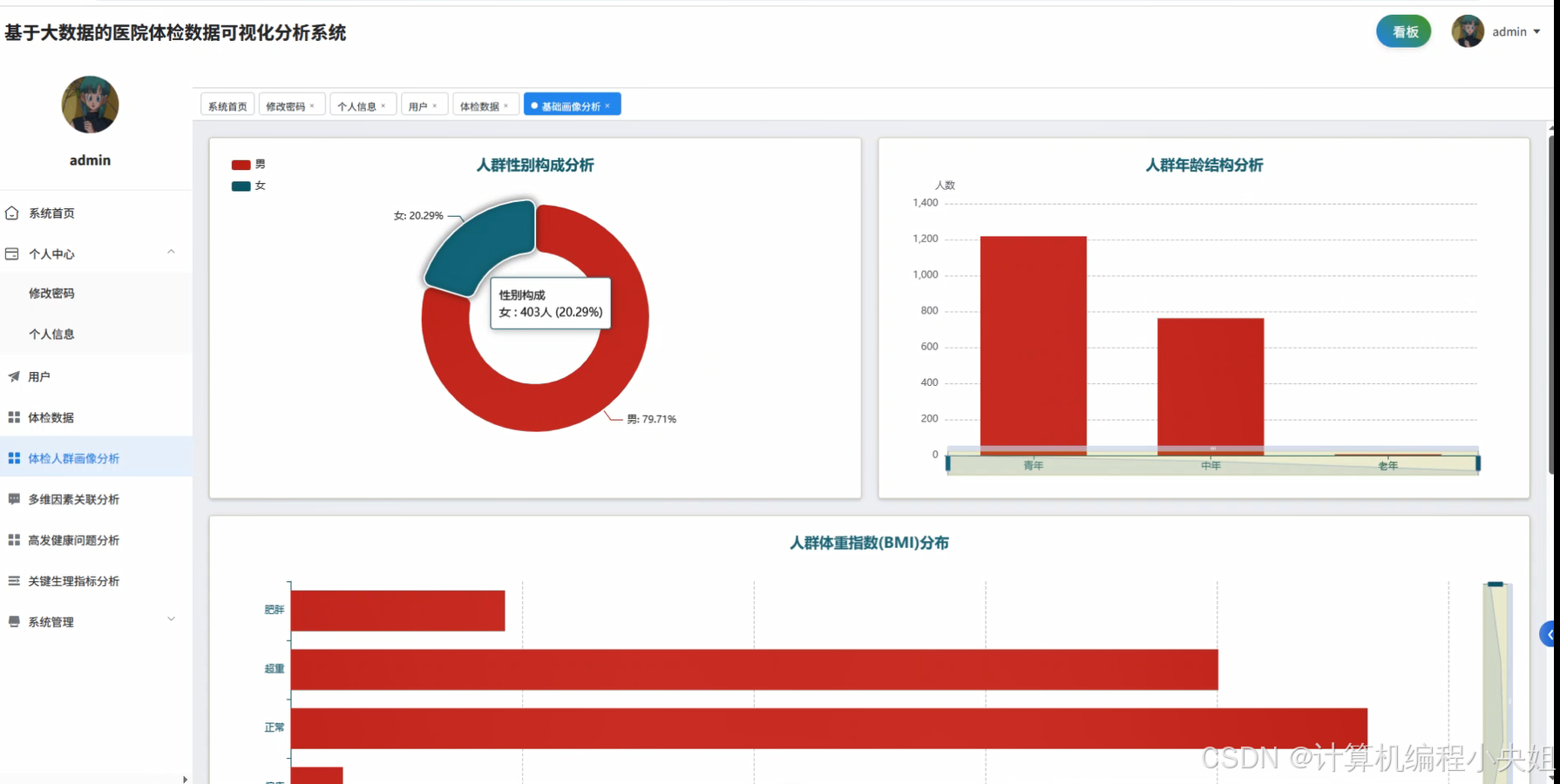

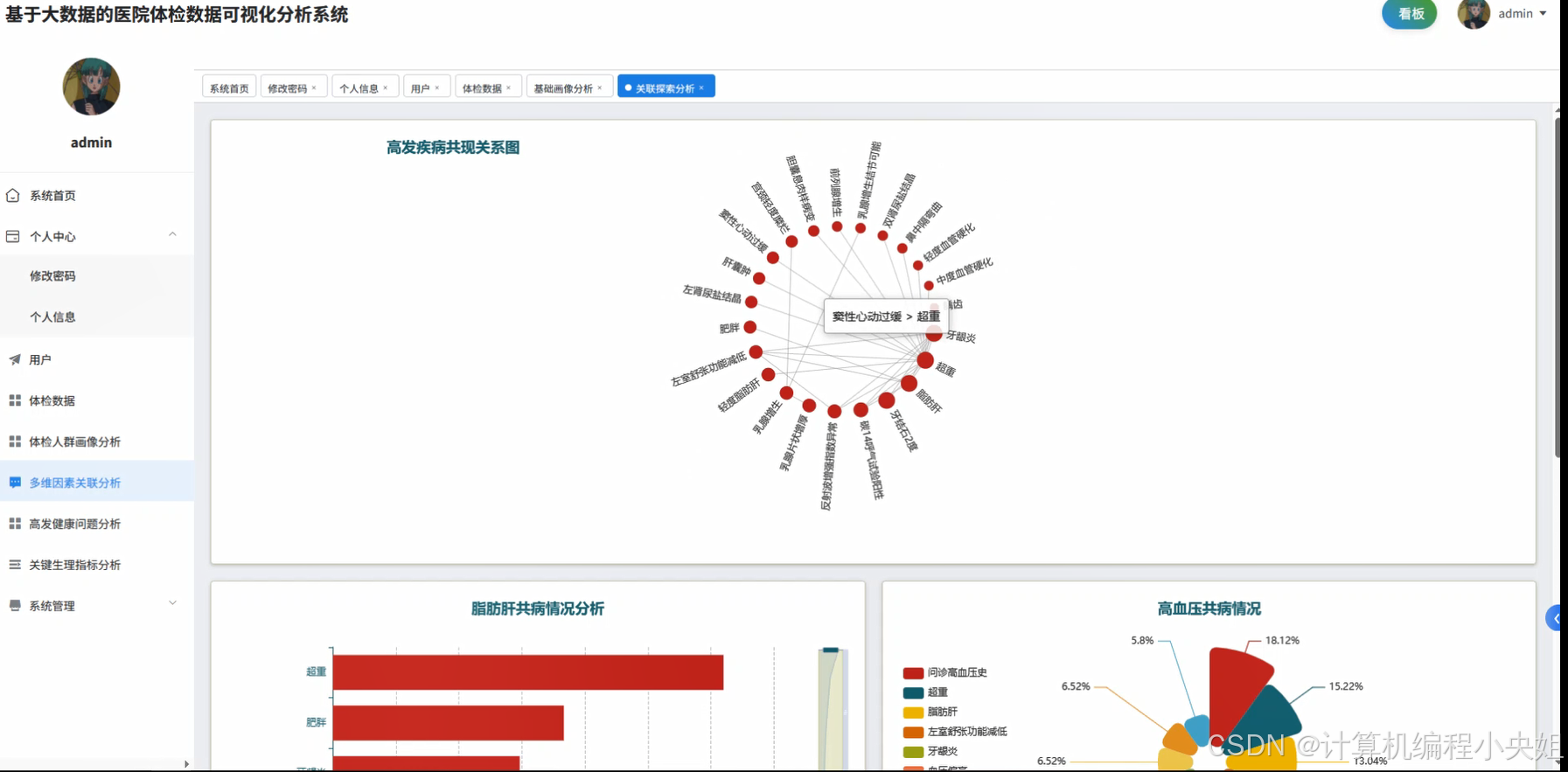

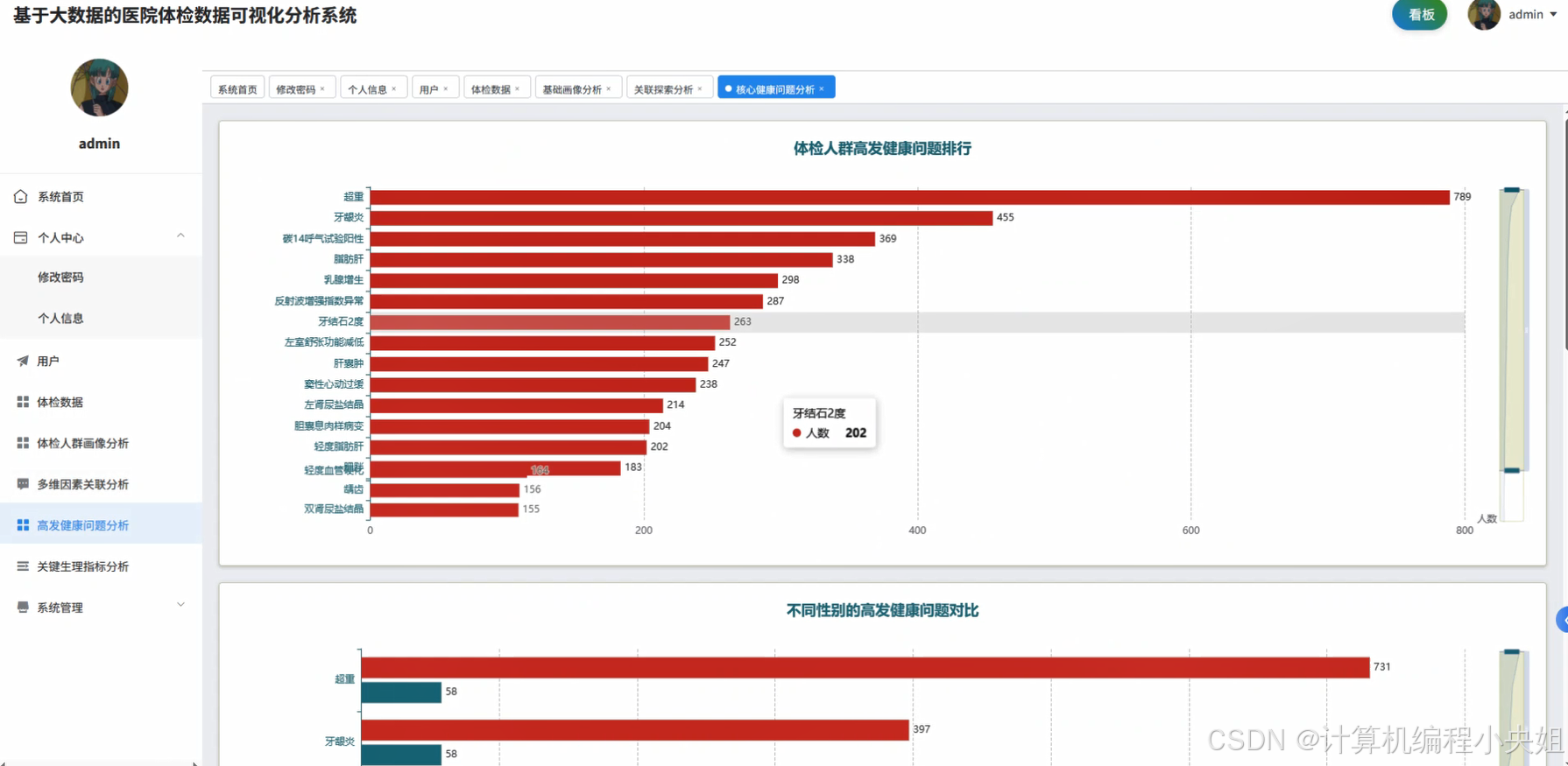

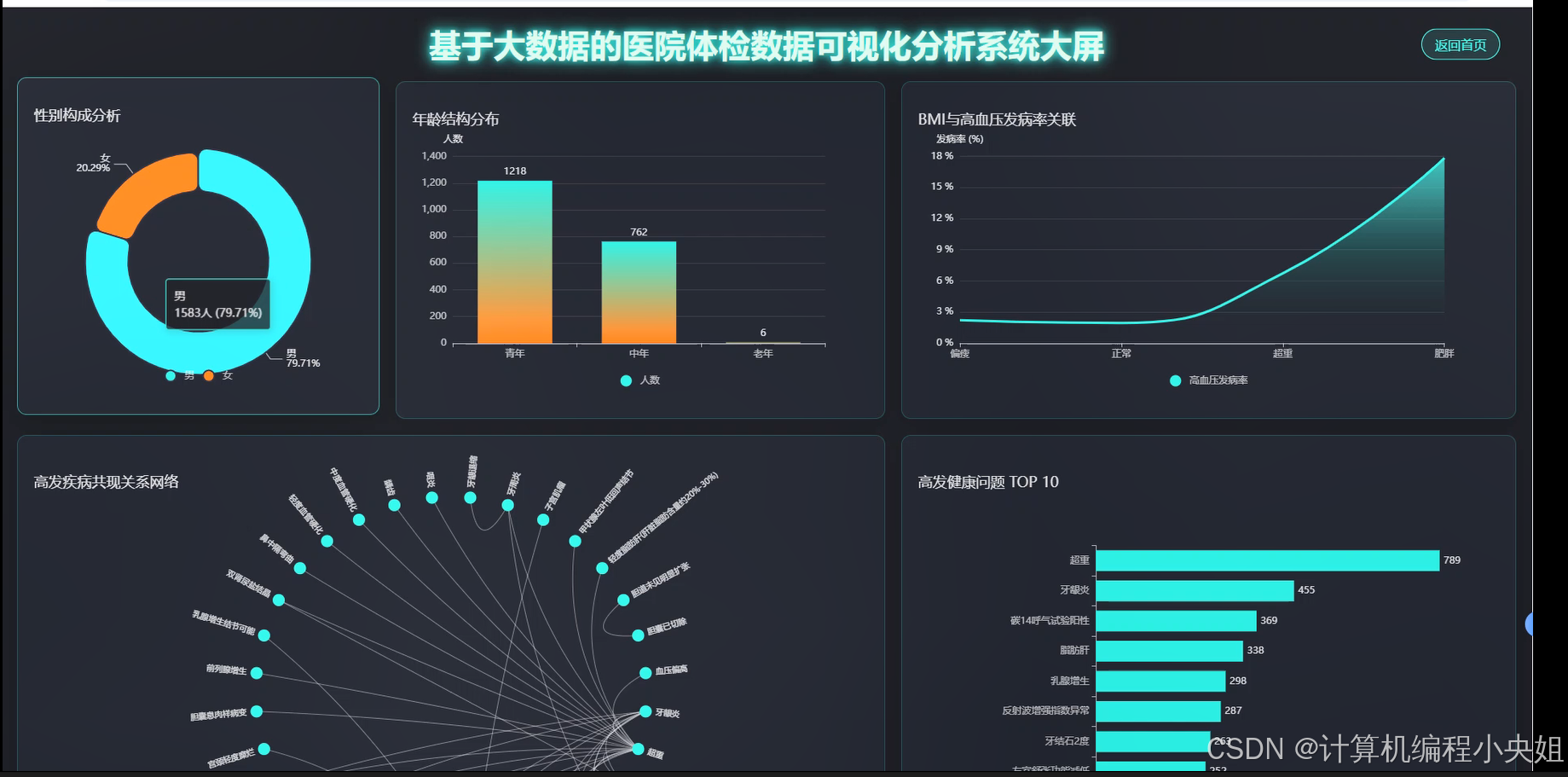

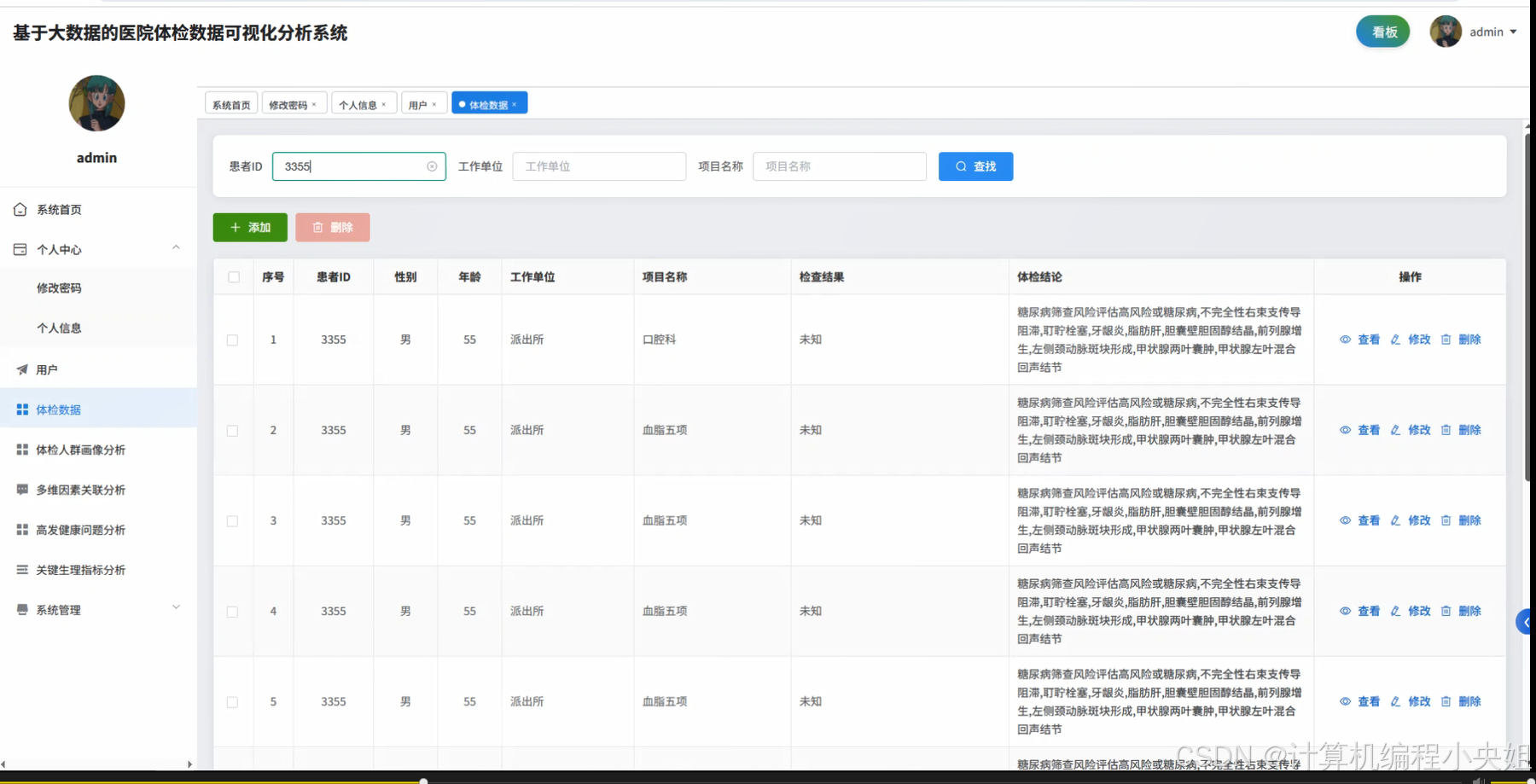

基于Hadoop+Spark的医院体检数据可视化分析系统，GitHub星标破千的毕设项目-系统演示图片

基于Hadoop+Spark的医院体检数据可视化分析系统，GitHub星标破千的毕设项目-系统部分代码

import org.apache.spark.sql.SparkSession;

import org.apache.spark.sql.Dataset;

import org.apache.spark.sql.Row;

import org.apache.spark.sql.functions;

import org.springframework.stereotype.Service;

import java.util.List;

import java.util.ArrayList;

import java.util.Map;

import java.util.HashMap;

@Service

public class MedicalDataAnalysisService {

    private SparkSession spark = SparkSession.builder().appName("MedicalDataAnalysis").master("local[*]").config("spark.sql.warehouse.dir", "/tmp/spark-warehouse").getOrCreate();

    public List<Map<String, Object>> analyzeHealthIndicators(String startDate, String endDate) {

        Dataset<Row> examData = spark.read().option("header", "true").csv("hdfs://localhost:9000/medical/exam_data");

        examData.createOrReplaceTempView("exam_records");

        String sql = "SELECT age_group, AVG(blood_pressure_systolic) as avg_systolic, AVG(blood_pressure_diastolic) as avg_diastolic, AVG(blood_sugar) as avg_sugar, AVG(cholesterol) as avg_cholesterol, COUNT(*) as total_count FROM (SELECT CASE WHEN age < 30 THEN '20-30' WHEN age < 40 THEN '30-40' WHEN age < 50 THEN '40-50' WHEN age < 60 THEN '50-60' ELSE '60+' END as age_group, blood_pressure_systolic, blood_pressure_diastolic, blood_sugar, cholesterol FROM exam_records WHERE exam_date >= '" + startDate + "' AND exam_date <= '" + endDate + "') GROUP BY age_group ORDER BY age_group";

        Dataset<Row> result = spark.sql(sql);

        List<Map<String, Object>> resultList = new ArrayList<>();

        for (Row row : result.collectAsList()) {

            Map<String, Object> record = new HashMap<>();

            record.put("ageGroup", row.getString(0));

            record.put("avgSystolic", Math.round(row.getDouble(1) * 100.0) / 100.0);

            record.put("avgDiastolic", Math.round(row.getDouble(2) * 100.0) / 100.0);

            record.put("avgSugar", Math.round(row.getDouble(3) * 100.0) / 100.0);

            record.put("avgCholesterol", Math.round(row.getDouble(4) * 100.0) / 100.0);

            record.put("totalCount", row.getLong(5));

            double riskScore = calculateRiskScore(row.getDouble(1), row.getDouble(2), row.getDouble(3), row.getDouble(4));

            record.put("riskLevel", getRiskLevel(riskScore));

            resultList.add(record);

        }

        return resultList;

    }

    public Map<String, Object> predictHealthRisk(String patientId) {

        Dataset<Row> patientData = spark.read().option("header", "true").csv("hdfs://localhost:9000/medical/patient_history");

        patientData.createOrReplaceTempView("patient_history");

        String sql = "SELECT * FROM patient_history WHERE patient_id = '" + patientId + "' ORDER BY exam_date DESC LIMIT 5";

        Dataset<Row> recentRecords = spark.sql(sql);

        List<Row> records = recentRecords.collectAsList();

        Map<String, Object> prediction = new HashMap<>();

        if (records.size() >= 3) {

            double[] systolicTrend = new double[records.size()];

            double[] diastolicTrend = new double[records.size()];

            double[] sugarTrend = new double[records.size()];

            for (int i = 0; i < records.size(); i++) {

                systolicTrend[i] = records.get(i).getDouble("blood_pressure_systolic");

                diastolicTrend[i] = records.get(i).getDouble("blood_pressure_diastolic");

                sugarTrend[i] = records.get(i).getDouble("blood_sugar");

            }

            double systolicSlope = calculateTrendSlope(systolicTrend);

            double diastolicSlope = calculateTrendSlope(diastolicTrend);

            double sugarSlope = calculateTrendSlope(sugarTrend);

            double currentSystolic = systolicTrend[0];

            double currentDiastolic = diastolicTrend[0];

            double currentSugar = sugarTrend[0];

            double predictedSystolic = currentSystolic + systolicSlope * 12;

            double predictedDiastolic = currentDiastolic + diastolicSlope * 12;

            double predictedSugar = currentSugar + sugarSlope * 12;

            double riskScore = calculateHealthRiskScore(predictedSystolic, predictedDiastolic, predictedSugar, systolicSlope, diastolicSlope, sugarSlope);

            prediction.put("patientId", patientId);

            prediction.put("predictedSystolic", Math.round(predictedSystolic * 100.0) / 100.0);

            prediction.put("predictedDiastolic", Math.round(predictedDiastolic * 100.0) / 100.0);

            prediction.put("predictedSugar", Math.round(predictedSugar * 100.0) / 100.0);

            prediction.put("riskScore", Math.round(riskScore * 100.0) / 100.0);

            prediction.put("riskCategory", getRiskCategory(riskScore));

            prediction.put("recommendations", generateRecommendations(riskScore, systolicSlope, diastolicSlope, sugarSlope));

        } else {

            prediction.put("error", "Insufficient historical data for prediction");

        }

        return prediction;

    }

    public List<Map<String, Object>> generateAbnormalDetectionReport(String department) {

        Dataset<Row> examData = spark.read().option("header", "true").csv("hdfs://localhost:9000/medical/exam_data");

        examData.createOrReplaceTempView("exam_records");

        String sql = "SELECT patient_id, patient_name, exam_date, blood_pressure_systolic, blood_pressure_diastolic, blood_sugar, cholesterol, bmi FROM exam_records WHERE department = '" + department + "' AND exam_date >= date_sub(current_date(), 30)";

        Dataset<Row> recentExams = spark.sql(sql);

        List<Map<String, Object>> abnormalCases = new ArrayList<>();

        for (Row row : recentExams.collectAsList()) {

            Map<String, Object> caseInfo = new HashMap<>();

            String patientId = row.getString("patient_id");

            String patientName = row.getString("patient_name");

            String examDate = row.getString("exam_date");

            double systolic = row.getDouble("blood_pressure_systolic");

            double diastolic = row.getDouble("blood_pressure_diastolic");

            double sugar = row.getDouble("blood_sugar");

            double cholesterol = row.getDouble("cholesterol");

            double bmi = row.getDouble("bmi");

            List<String> abnormalIndicators = new ArrayList<>();

            if (systolic > 140 || systolic < 90) abnormalIndicators.add("收缩压异常: " + systolic);

            if (diastolic > 90 || diastolic < 60) abnormalIndicators.add("舒张压异常: " + diastolic);

            if (sugar > 7.0 || sugar < 3.9) abnormalIndicators.add("血糖异常: " + sugar);

            if (cholesterol > 6.2) abnormalIndicators.add("胆固醇偏高: " + cholesterol);

            if (bmi > 28 || bmi < 18.5) abnormalIndicators.add("BMI异常: " + bmi);

            if (!abnormalIndicators.isEmpty()) {

                caseInfo.put("patientId", patientId);

                caseInfo.put("patientName", patientName);

                caseInfo.put("examDate", examDate);

                caseInfo.put("abnormalIndicators", abnormalIndicators);

                caseInfo.put("severityLevel", calculateSeverityLevel(abnormalIndicators.size(), systolic, diastolic, sugar));

                caseInfo.put("followUpRequired", abnormalIndicators.size() >= 2);

                abnormalCases.add(caseInfo);

            }

        }

        abnormalCases.sort((a, b) -> Integer.compare((Integer) b.get("severityLevel"), (Integer) a.get("severityLevel")));

        return abnormalCases;

    }

    private double calculateRiskScore(double systolic, double diastolic, double sugar, double cholesterol) {

        double score = 0.0;

        if (systolic > 140) score += (systolic - 140) * 0.1;

        if (diastolic > 90) score += (diastolic - 90) * 0.15;

        if (sugar > 7.0) score += (sugar - 7.0) * 2.0;

        if (cholesterol > 5.2) score += (cholesterol - 5.2) * 1.5;

        return Math.min(score, 10.0);

    }

    private String getRiskLevel(double score) {

        if (score < 2.0) return "低风险";

        else if (score < 5.0) return "中等风险";

        else return "高风险";

    }

    private double calculateTrendSlope(double[] values) {

        int n = values.length;

        double sumX = 0, sumY = 0, sumXY = 0, sumX2 = 0;

        for (int i = 0; i < n; i++) {

            sumX += i;

            sumY += values[i];

            sumXY += i * values[i];

            sumX2 += i * i;

        }

        return (n * sumXY - sumX * sumY) / (n * sumX2 - sumX * sumX);

    }

    private double calculateHealthRiskScore(double systolic, double diastolic, double sugar, double sysSlope, double diaSlope, double sugSlope) {

        double baseRisk = calculateRiskScore(systolic, diastolic, sugar, 5.0);

        double trendRisk = Math.abs(sysSlope) * 0.5 + Math.abs(diaSlope) * 0.7 + Math.abs(sugSlope) * 1.2;

        return baseRisk + trendRisk;

    }

    private String getRiskCategory(double score) {

        if (score < 3.0) return "低风险";

        else if (score < 6.0) return "中等风险";

        else if (score < 9.0) return "高风险";

        else return "极高风险";

    }

    private List<String> generateRecommendations(double riskScore, double sysSlope, double diaSlope, double sugSlope) {

        List<String> recommendations = new ArrayList<>();

        if (riskScore > 5.0) recommendations.add("建议定期监测血压和血糖变化");

        if (sysSlope > 2.0) recommendations.add("注意控制钠盐摄入，加强有氧运动");

        if (sugSlope > 0.5) recommendations.add("控制碳水化合物摄入，保持规律作息");

        if (recommendations.isEmpty()) recommendations.add("保持良好的生活习惯，定期体检");

        return recommendations;

    }

    private int calculateSeverityLevel(int abnormalCount, double systolic, double diastolic, double sugar) {

        int level = abnormalCount;

        if (systolic > 180 || diastolic > 110) level += 2;

        if (sugar > 11.1) level += 2;

        return Math.min(level, 5);

    }

}

基于Hadoop+Spark的医院体检数据可视化分析系统，GitHub星标破千的毕设项目-结语

💟💟如果大家有任何疑虑，欢迎在下方位置详细交流。
